You have a VMware environment and configure AMPP with vCenter integration on your Brocade VCS Fabric.
After a successful discovery of virtual infrastructure assets, which two changes would you expect to find in the Brocade VDX configuration? (Choose two.)
Referring to the exhibit, you are experiencing latency issues on interface Te 27/0/60.
switch# show interface tengigabitethernet 27/0/60
TenGigabitEthernet 27/0/60 is up, line protocol is up (connected)
Hardware is Ethernet, address is 0005.3367.26d8
Current address is 0005.3367.26d8
Pluggable media present
Interface index (ifindex) is 283874428169
MTU 2500 bytes
LineSpeed Actual : 10000 Mbit
LineSpeed Configured : Auto, Duplex: Full
Flowcontrol rx: off, tx: off
Last clearing of show interface counters: 22:07:59
Queueing strategy: fifo
Receive Statistics:
15254 packets, 1395269 bytes
Unicasts: 10641, Multicasts: 2637, Broadcasts: 1976
64-byte pkts: 10874, Over 64-byte pkts: 3294, Over 127-byte pkts: 117
Over 255-byte pkts: 969, Over 511-byte pkts: 0, Over 1023-byte pkts: 0
Over 1518-byte pkts(Jumbo): 0
Runts: 0, Jabbers: 0, CRC: 1128350, Overruns: 0
Errors: 1128350, Discards: 0
Transmit Statistics:
12633 packets, 1155963 bytes
Unicasts: 18, Multicasts: 12615, Broadcasts: 0
Underruns: 0
Errors: 0, Discards: 0
Rate info (interval 299 seconds):
Input 0.000128 Mbits/sec, 0 packets/sec, 0.00% of line-rate
Output 0.000000 Mbits/sec, 0 packets/sec, 0.00% of line-rate
Time since last interface status change: 0d00h40m
What are two reasons for the problem? (Choose two.)
The server connected to the port shown in the exhibit is sending VLAN tagged frames for VLAN 40 to the port.
sw0# sh run in ten 2/0/20
interface TenGigabitEthernet 2/0/20
fabric isl enable
fabric trunk enable
switchport
switchport mode access
switchport access vlan 40
spanning-tree shutdown
no shutdown
!
What will happen to the frames when received by the Brocade VDX?
You added a new Brocade VDX 6740 to an existing Brocade VCS Fabric in your data center. You connected the VDX 6740 to ports 3/0/11 and 3/0/12 on the existing fabric. After the switch boots, you realize it does not join the fabric. You examine the ISL status on the fabric as shown in the exhibit.
sw0(conf-if-te-3/0/19)# do sh fabric islport
Name: sw0
Type: 95.2
State: Online
Role: Fabric Principal
VCS Id: 1
Config Mode:Distributed
Rbridge-id: 3
WWN: 10:00:00:05:33:46:71:61
FCF MAC: 00:05:33:46:71:61
Index Interface State Operational State
===================================================================
0 Te 3/0/1 Down
1 Te 3/0/2 Down
2 Te 3/0/3 Down
3 Te 3/0/4 Down
4 Te 3/0/5 Down
5 Te 3/0/6 Down
6 Te 3/0/7 Down
7 Te 3/0/8 Up ISL 10:00:00:05:33:5c:e1:5a "sw0" (downstream)(Trunk Primary)
8 Te 3/0/9 Up ISL (Trunk port, Primary is 3/0/8 )
9 Te 3/0/10 Down
10 Te 3/0/11 Up ISL (Trunk port, Primary is 3/0/12 )
11 Te 3/0/12 Up ISL segmented,(ESC mismatch, Config Mode)(Trunk Primary)
12 Te 3/0/13 Down
13 Te 3/0/14 Down
14 Te 3/0/15 Down
15 Te 3/0/16 Down
16 Te 3/0/17 Down
17 Te 3/0/18 Down
18 Te 3/0/19 Down
19 Te 3/0/20 Down
20 Te 3/0/21 Down
21 Te 3/0/22 Down
22 Te 3/0/23 Down
23 Te 3/0/24 Down
What is causing the problem?
Your task is to configure remote server authentication in all of the switches in your Brocade VCS Fabric running NOS 4.1.1.
Which protocols would you use to accomplish this task? (Choose three.)
You want to remove one of your Brocade VDX 6740s from your VCS fabric in Logical Chassis mode. You issue the no vcs enable command on the VDX 6740 but the switch is not removed.
What would you do to resolve the problem?
Which criteria determines the principal RBridge election in a Brocade VCS Fabric?
Your data center will include a Brocade VCS Fabric that has a Brocade VDX 8770-4 for access/aggregation and a VDX 8770-8 at the core. You must ensure that both chassis are assembled for highest availability. You have a total of four SFMs to deploy in the two chassis.
Which slot combinations provide the expected results?

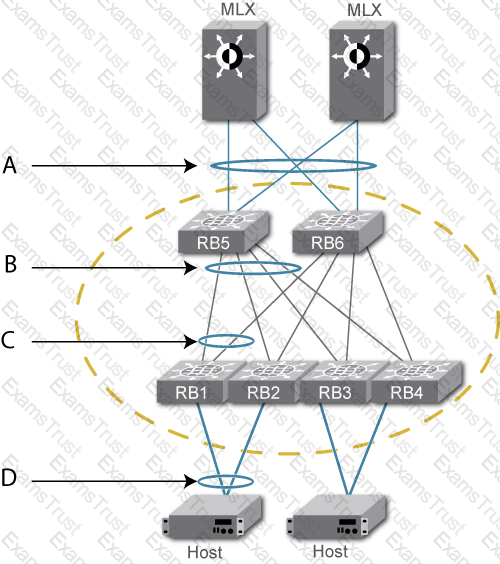

You are designing a single Brocade VCS Fabric for your data center network. Your MLX core routers are stand-alone. You want to use vLAG connectivity for devices. All link groups need to form single vLAGs.
Referring to the exhibit, which link group will accomplish this?
You want to determine which link aggregation mode you should choose between a pair of Brocade VDX switches in different VCS Fabrics. You want to use frame-based distribution.
Which action should you perform?
You just connected a new Brocade VDX 6740T-1G switch to the top of rack. You want to connect two 40 GbE uplinks to VDX1 and two 40 GbE uplinks to VDX2. Two of the links come online and two of them are segmented.
What is a reason for this problem?
Which legacy Brocade switch requires GBICs?
You receive a replacement Brocade VDX 6740T that has no management IP address configured on it.
Which port would you use to set the management IP?
You are extending your Brocade VCS Fabric over 30 km long-distance ISLs.
Which two services are supported over these ISLs? (Choose two.)
Your Brocade VCS Fabric design will include vLAG connectivity to devices in your data center.
Which three statements are true? (Choose three.)
You are attempting to merge two Brocade VDX switches, both running in fabric mode, but they segment.
sw0# show fabric islports
Name: sw0
Type: 96.5
State: Online
Role: Fabric Principal
VCS Id: 10
Config Mode:Local-only
Rbridge-id: 4
WWN: 10:00:00:05:33:91:48:f7
FCF MAC: 00:05:33:91:48:f7
sw0# show fabric islports
Name: sw0
Type: 96.5
State: Online
Role: Fabric Principal
VCS Id: 10
Config Mode:Distributed
Rbridge-id: 20
WWN: 10:00:00:05:33:90:92:e4
FCF MAC: 00:05:33:90:92:e4
Referring to the exhibit, what is the reason?
You are asked to implement PIM in your existing Brocade VCS Fabric running NOS 4.1. The fabric consists of VDX 8770s, VDX 6740s, VDX 6730s, and VDX 6720s.
On which two Brocade VDX models would this be implemented? (Choose two.)
One of the switches in your Brocade VCS Fabric in logical chassis mode needs to be replaced. After configuring the replacement switch with the same VCS RBridge ID of the faulty switch, you attempt to replace the faulty switch with a new one but find the switch is segmented from the fabric.
Which two steps should be completed to replace the faulty switch? (Choose two.)
You see a large number of alerts in Brocade Network Advisor on a Brocade VDX switch. You are asked to gather information to send to technical support for analysis.
What information should you send? (Choose three.)
What are three primary benefits of Access Control Lists (ACLs)? (Choose three.)
Which three attributes are distributed by the Ethernet Name Server (eNS) within a Brocade VCS Fabric? (Choose three.)
Your customer would like to control a Brocade VCS Fabric consisting of four Brocade VDX 6740s by using SSH to the same address on the principal switch in the fabric.
Which two attributes should be configured to accomplish this? (Choose two.)
Which two statements are true when traffic is transmitted over a fabric ISL trunk? (Choose two.)
You have connectivity from a top of rack Brocade VDX 6740 to two Brocade VDX 8770s in the core. Ports 1-16 are connected to one VDX 8770, and ports 49-52 are connected to the other VDX 8770 in break out mode.
Which two statements about the VDX 6740 in this scenario are true? (Choose two.)
A principal RBridge fails.
What happens to the VCS virtual IP address?
You have three new Brocade VDX switches that are properly configured to join into a single Brocade VCS Fabric. You add two links in the same port group between each of the three switches.
Which two statements are true? (Choose two.)
Which Brocade VCS Fabric mode is required to support communication to an NSX controller?
