Leaving one rack unit open at the bottom of a rack containing an XtremIO X2 is a practice recommended for allowing more efficient cooling. This space acts as a buffer zone, helping to facilitate better airflow and prevent the recirculation of hot air within the rack. It is a part of thermal management strategies in data centers to optimize the cooling systems, which are crucial for maintaining the performance and longevity of the equipment1.

The Dell Best Practices Guide for Rack Enclosures emphasizes the importance of proper cooling and airflow management within rack enclosures. It suggests that efficient cooling can help reduce inefficiencies at the rack level and is essential for maintaining the necessary thermal environment for rack-mounted equipment1. While the guide does not explicitly mention leaving a rack unit open at the bottom, the principle of optimizing airflow for cooling purposes is consistent with the practice.

When an XtremIO X2 array is delivered, the cable shown in the exhibit should be connected to the middle USB ports in both X3-SC1 and X3-SC2. This is based on the standard configuration and setup for XtremIO X2 arrays as per the Dell XtremIO Deploy Achievement document. The middle USB ports are typically used for specific functions such as connecting to a management network or interfacing with other devices that are part of the storage array infrastructure.

The process for connecting the cable is as follows:

Identify the Correct Ports: Locate the middle USB ports on both X3-SC1 and X3-SC2. These ports are usually marked and differentiated from other USB ports by their position or labeling.

Connect the Cable: Insert the USB connector end of the cable into the middle USB port on X3-SC1 and then connect the other end to the corresponding port on X3-SC2. Ensure that the connection is secure and that the cable is not obstructing any other components or airflow.

Verify the Connection: Once connected, verify that the cable is recognized by the system. This can typically be done through the XtremIO Management Server (XMS) interface or by checking the system’s hardware configuration.

Check for Functionality: Ensure that the connected cable functions as intended. This may involve transferring data or accessing the management network, depending on the specific use case for the cable.

Reference Official Documentation: For detailed instructions and best practices, always refer to the official Dell XtremIO Deploy Achievement document1. This document provides comprehensive guidance on all aspects of setting up and managing XtremIO X2 arrays, including cable connections.

By following these steps and referring to the official documentation, you can ensure that the cable is connected correctly and that the XtremIO X2 array is set up for optimal performance and management.

When creating a volume on an XtremIO X2-S array, one of the options that can be selected is Tags. Tags are used to organize and manage volumes by assigning descriptive labels, making it easier to group and identify volumes based on specific criteria. References := Dell Deployment Services

 Power the PDUs

 Power on the BBUs

 Power on the Storage Controllers

 Power on the physical XMS Server

Power the PDUs: The Power Distribution Units (PDUs) need to be powered first as they supply power to all the other components.

Power on the BBUs: The Battery Backup Units (BBUs) are powered on next to ensure that the system has emergency power in case of a power failure.

Power on the Storage Controllers: The storage controllers are responsible for managing the storage array, so they need to be powered on before the server.

Power on the physical XMS Server: Finally, the XMS server, which provides management and monitoring capabilities, is powered on.

References:

Dell XtremIO Deployment Services

Dell XtremIO Deployment Guide and official documentation for detailed step-by-step procedures.

 Click, Create/Modify Mapping

 Select the volume

 Select an Initiator group

 Assign a LUN number

 View/verify the results

Click, Create/Modify Mapping: Start by navigating to the section where you can create or modify mappings in the XtremIO WebUI.

Select the volume: Choose the volume you want to map to a host from the list of available volumes.

Select an Initiator group: Pick the appropriate initiator group, which represents the host or group of hosts to which the volume will be mapped.

Assign a LUN number: Assign a Logical Unit Number (LUN) to the volume, which the host will use to access it.

View/verify the results: Finally, review the mapping configuration to ensure that everything is set up correctly and verify that the host can access the mapped volume.

References:

Dell XtremIO User Guide

XtremIO WebUI Documentation

Dell XtremIO Deployment Services

Best practices for managing volumes and host mappings in XtremIO environments

To update the Install base record for Dell XtremIO in addition to the PSNT, the following data needs to be provided:

Microcode Version: This refers to the firmware version running on your XtremIO system. It’s essential to have the latest microcode version reported for support and maintenance purposes.

Installation Configuration: This includes details about the XtremIO system’s setup, such as cluster configuration, number of X-Bricks, and any custom settings applied during the installation.

The process of updating the Install base record typically involves:

Gathering Information: Collect the microcode version from the XtremIO Management Server (XMS) interface and document the installation configuration details.

Submitting the Data: Provide the collected information to Dell Support or through the appropriate channel as directed in the Dell XtremIO Deploy Achievement documentation.

Verification: Dell Support may verify the provided information against their records and the actual system configuration to ensure accuracy.

Record Update: Once verified, Dell Support will update the Install base record with the new information.

For detailed instructions and the official procedure, refer to the Dell XtremIO Deploy Achievement document1. It’s crucial to follow the official guidelines to ensure that the Install base record is accurately updated, which can be critical for effective support and maintenance of the XtremIO system.

 Install the XMS Server

 Install the Storage Controllers

 Initialize the Cluster Services

 Configure ESRS

 Generate an XtremIO Log Bundle

Install the XMS Server: The XtremIO Management Server (XMS) must be installed first, as it is the central management point for the XtremIO storage array.

Install the Storage Controllers: After setting up the XMS, the next step is to install the storage controllers, which are the main components of the XtremIO array responsible for handling data operations.

Initialize the Cluster Services: Once the storage controllers are installed, you need to initialize the cluster services to configure and prepare the storage array for operation.

Configure ESRS (EMC Secure Remote Services): After the cluster services are initialized, configure ESRS for remote support and monitoring, ensuring that the system can be supported remotely by Dell EMC.

Generate an XtremIO Log Bundle: Finally, generate an XtremIO log bundle for initial diagnostics and baseline information. This step ensures that all necessary logs are collected and can be reviewed if needed.

References:

Dell XtremIO X1 Storage Array Software Installation and Upgrade Guide

Dell XtremIO Deployment Services

XtremIO X1 User and Maintenance Guide

The best practice for creating a snapshot of a 10-volume database and presenting them to a backup server at a scheduled time is to use a Consistency Group in conjunction with the Scheduler. This approach ensures that all volumes in the snapshot are consistent with each other, as they are taken at the same point in time. The Scheduler allows for the automation of this process, ensuring that the snapshot is created at exactly 1:00 AM without manual intervention. This method is recommended for maintaining consistency across multiple volumes, which is crucial for databases to ensure transactional integrity1.

Data Protection Group (DPG) in XtremIO X2: The DPG is designed to tolerate multiple disk drive failures while continuing to provide data services.

Failure Tolerance: In a fully-populated DPG with sufficient capacity, it would require 7 disk drives to fail sequentially to stop the data services, as XtremIO is designed with high fault tolerance and redundancy.

References:

Dell XtremIO X2 Data Protection Guide

XtremIO Architecture and Fault Tolerance Documentation

Dell XtremIO Deployment Services

In a heterogeneous environment where multiple storage arrays are connected to VMware vSphere along with XtremIO X2, it is recommended to set the Disk.SchedNumReqOustanding parameter to 32. This setting determines the maximum number of I/O operations that can be queued to the storage array. A value of 32 is often recommended to balance performance with resource utilization.

The Disk.SchedNumReqOustanding parameter is part of the VMware vSphere’s advanced settings and can be adjusted to optimize the performance of the storage arrays connected to the ESXi hosts. The setting of 32 is a starting point and may need to be adjusted based on the specific workload and storage array capabilities1.

Failed Cluster Creation: When a cluster creation fails, logs need to be collected for troubleshooting.

Debug Command: Running the create-debug-info debug-info-name=initial setup command helps in collecting the necessary logs for analysis.

Log Bundle Collection: This command gathers all relevant information needed to diagnose and fix the cluster creation issue.

References:

Dell XtremIO Command Reference Guide

Dell XtremIO Troubleshooting Guide

The send-syr-notification command in the XtremIO XMCLI (XtremIO Management Command Line Interface) is used to test the Connect Home functionality. This feature allows the XtremIO system to send system health and status information to Dell Technologies for proactive monitoring and support. References := Dell Deployment ServicesTo test the Connect Home functionality using the XtremIO XMCLI, the send-email-notification command can be used. This command is designed to send a test email to verify that the email notification system is properly configured and able to send out alerts.

The RESTful API method used to retrieve an existing configuration from an XtremIO system is the HTTP GET methD. This is a standard method used in RESTful APIs for retrieving resources. In the context of XtremIO, the GET method would be used to call endpoints that return information about the system’s configuration. For example, a GET request to /api/json/v2/types/clusters would retrieve information about the clusters1. The Official Dell XtremIO Deploy Achievement document will contain specific details on the API calls and should be referred to for the most accurate instructions.

Understanding X-Bricks: X-Bricks are the fundamental building blocks of an XtremIO storage array. Each X-Brick consists of a pair of storage controllers and a set of SSDs.

XtremIO X1 Cluster Configuration:

An XtremIO X1 cluster can scale by adding more X-Bricks.

The scalability and configuration limits depend on the hardware and software capabilities of the XtremIO X1 system.

Maximum Number of X-Bricks:

The XtremIO X1 cluster can be configured with up to 4 X-Bricks.

This means the maximum configuration for an XtremIO X1 cluster would include 4 X-Bricks.

References:

Dell XtremIO X1 System Overview and Specifications

Dell XtremIO Deployment Services

Official XtremIO Documentation for hardware and cluster configuration limits.

In XtremIO, snapshots are created efficiently using metadata rather than duplicating the actual data blocks. When a snapshot is made, it initially shares the same data blocks as its ancestor. When the first write occurs to a block in a snapshot, it triggers a Copy-On-First-Write (COFW) operation. This means the original data block is copied to a new location to preserve the integrity of the snapshot, ensuring that each snapshot reflects the data state at the moment of its creation.

This COFW operation ensures that the data remains consistent and unchanged for each snapshot, while allowing new writes to occur without impacting the original data or other snapshots. As a result, the first write to each snapshot impacts its ancestor by triggering a COFW operation.

References:

Dell XtremIO Deployment and Learning Course Materials

For an XtremIO X2 two X-Brick system installation, only two IP addresses are required because the entire system is managed through the first X-Brick. This is in line with the design of the XtremIO X2 architecture, which allows for a single management point for multiple X-Bricks. The XMS (XtremIO Management Server) manages multiple XtremIO arrays and requires an IP address for each X-Brick in the cluster1. In a two X-Brick system, the first X-Brick acts as the primary management point, and the second X-Brick is managed through it, thus only necessitating two IP addresses for management purposes2.

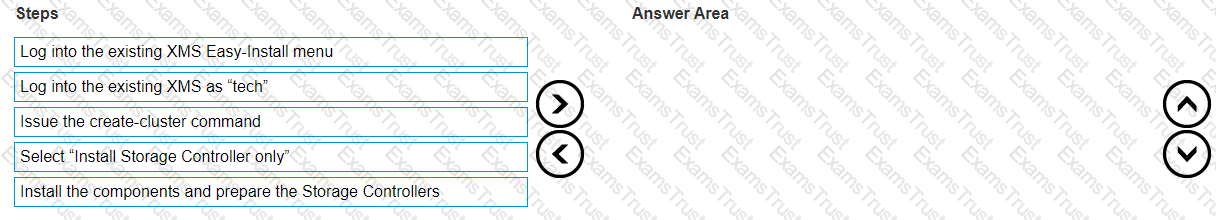

 Log into the existing XMS as "tech"

 Select “Install Storage Controller only”

 Log into the existing XMS Easy-Install menu

 Install the components and prepare the Storage Controllers

 Issue the create-cluster command

Log into the existing XMS as "tech": Begin by logging into the existing XtremIO Management Server (XMS) using the "tech" user account, which has the necessary privileges to perform installation and configuration tasks.

Select “Install Storage Controller only”: Choose the option to install only the storage controller to ensure the proper setup of the storage controllers in the cluster.

Log into the existing XMS Easy-Install menu: Access the Easy-Install menu on the XMS to guide you through the setup process.

Install the components and prepare the Storage Controllers: Follow the instructions to install all necessary components and prepare the storage controllers for integration into the cluster.

Issue the create-cluster command: Finally, execute the create-cluster command to officially create and configure the new XtremIO X1 cluster within the XMS.

References:

Dell XtremIO Installation and Setup Guide

Dell XtremIO Deployment Services

XtremIO Management Server (XMS) Documentation

The XMCLI command show-ssds is used to display information about the SSDs in the XtremIO system. This command includes details about the encryption capabilities of the DAE (Disk Array Enclosure) drives, allowing administrators to verify if the drives are capable of encryption and ensuring that the data is secure.

References:

Dell XtremIO Deployment and Learning Course Materials

XtremIO X2 Command Line Interface Guide
