EMC D-XTR-OE-A-24 Dell XtremIO Operate Achievement Exam Practice Test

When an XtremIO snapshot is taken of a production volume, it creates two snapshot entities.

These snapshots are identified as S1 and S2.

The creation of S1 and S2 ensures that the data consistency and integrity are maintained while providing a point-in-time copy of the production volume.

These snapshots can be used for various purposes such as backup, testing, or disaster recovery without impacting the performance of the production volume.

References:

Dell XtremIO Snapshots Guide

XtremIO Best Practices for Snapshot Management

7 Days:Given that 500 production volumes must be backed up four times a day using XtremIO’s Protection Copies feature, the system can store the read-only volumes for approximately 7 days before the oldest backups are deleted.

This calculation ensures that the array’s capacity is used efficiently while adhering to the backup policy requirements.

References:

Dell XtremIO Protection Copies Feature Guide

XtremIO Backup and Recovery Best Practices

The purpose of Microsoft VSS (Volume Shadow Copy Service) integration with XtremIO is to allow third-party management of volume operations.

VSS provides a framework that enables applications to create consistent snapshots, backups, and restores of data without disrupting operations.

This integration is essential for ensuring data integrity and consistency during backup and restore operations.

References:

Dell XtremIO VSS Integration Guide

Microsoft VSS Documentation

The transfer rate for disk 19F shown in the exhibit is 2 MB/s. The exhibit indicates that the scale for "Disk Bytes/sec" is set to 0.00010000. Given this scale, the displayed value of approximately 200 (in the highlighted blue line) corresponds to 200 x 0.00010000 MB/s, which equals 2 MB/s.

References:

Analysis of the exhibit data and the scale provided.

General understanding of performance monitoring metrics and their interpretations.

XtremIO implements Data at Rest Encryption (DARE) to secure data on its SSDs.

This encryption method is designed to prevent unauthorized access to data if the physical media is stolen or lost.

The encryption process involves using a Data Encryption Key (DEK) for each drive, ensuring that data cannot be read without proper authentication.

This feature is crucial for maintaining data integrity and security, especially in scenarios involving sensitive or critical information.

References:

Dell XtremIO Security Guide

Data Encryption at Rest Technical Overview

The SuperCapacitor (SuperCap) in an XtremIO X2 NVRAM card is designed to provide power to the card in the event of a power failure.When there is a power failure, the SuperCap discharges to maintain power to the NVRAM card long enough to ensure that all data in transit is written to flash storage, preventing data loss1.

Here’s the sequence of events during a power failure:

Power Failure Detected: The system detects a loss of power to the NVRAM card.

SuperCap Discharge: The SuperCap begins to discharge, providing backup power to the NVRAM card.

Data Write: The NVRAM card uses the power from the SuperCap to write any data in transit to the SSDs in the storage array.

Data Secured: Once the data is safely written to the SSDs, the NVRAM card can safely shut down without risking data loss.

The SuperCap is a critical component that ensures data integrity during unexpected power interruptions. It is not used during normal operation (OB), after data is secured (OC), or when power is restored (OD).Its primary function is to protect data during power failures (OA)1.

When "Small IO Alerts" are set to "enabled," an administrator will receive an alert when I/Os smaller than 8 KB are detected.

This setting helps in monitoring and managing small I/O operations that might affect performance and efficiency on the XtremIO array.

Detecting small I/O operations is crucial for maintaining optimal performance, as these can create overhead and impact the array's efficiency.

References:

Dell XtremIO Monitoring Guide

XtremIO Alerts Configuration Documentation

Small, random workloads are best suited for high IOPS in a VDI (Virtual Desktop Infrastructure) environment.

Such workloads typically consist of numerous small I/O operations, which require a high number of IOPS to maintain performance.

XtremIO's architecture is optimized for handling small, random I/O patterns efficiently, making it ideal for this type of VDI workload.

References:

Dell XtremIO VDI Best Practices

Storage Performance Fundamentals

Offloaded Data Transfer (ODX) is a feature in Windows that enables efficient data transfer within or between compatible storage arrays, minimizing the host resources used during these operations.When a Microsoft Windows host is connected to an XtremIO array, leveraging ODX can significantly reduce the host’s CPU and network resource utilization during Volume Shadow Copy Service (VSS) operations1.

ODX Functionality: ODX offloads the data transfer workload from the host to the storage array itself.This means that data can be moved or copied within the array without passing through the host, thus not consuming host bandwidth or processing power1.

VSS Operations: During VSS operations, which create snapshots or backups of data, there can be a significant amount of data movement.Utilizing ODX allows these operations to be handled more efficiently by the storage array, freeing up the host to perform other tasks1.

XtremIO Compatibility: XtremIO supports ODX, which allows it to handle data movement operations internally.This is particularly beneficial in environments wherefrequent snapshots or backups are taken, as it ensures minimal impact on host performance1.

Other Options: While MPIO (OA) is used for path redundancy and load balancing, VAAI (OB) offloads certain storage operations to the array, and VSI (OC) is a set of VMware integration tools, none of these specifically address the reduction of host resource utilization during VSS operations as effectively as ODX1.

For integrating Oracle with XtremIO, along with path failover software, it is best practice to increase the queue depth and execution throttle to "maximum."

This configuration optimizes the handling of I/O requests, improving performance and efficiency.

Properly tuning these settings ensures that the HBA drivers can handle the high I/O demands of an Oracle environment on XtremIO.

References:

Dell XtremIO Oracle Integration Guide

XtremIO Configuration Best Practices

To provision XtremIO volumes to servers, the following steps are typically required:

Host Configuration: This involves setting up the host with the necessary drivers and tools to communicate with the XtremIO storage system.It may include installing HBAdrivers, multipathing software, and configuring host parameters to optimize performance1.

SAN Connectivity: Establishing SAN connectivity is crucial for the host to access the XtremIO volumes.This step involves zoning in the SAN switches to ensure that the host can see the XtremIO storage controllers1.

Initiator Group: An initiator group is a collection of host initiators (WWNs or IQNs) that are allowed to access a set of volumes.Creating and configuring an initiator group in the XtremIO system is necessary to control access to the volumes1.

Volumes Mapping: The final step is to map the volumes to the host. This is done by associating the volumes with the initiator group that contains the host’s initiators.Once mapped, the volumes will be accessible to the host for data storage and retrieval1.

The other options, such as RAID groups (OA), creating pools (OB), and encryption (OC), are not directly related to the provisioning process of XtremIO volumes to servers.RAID groups and pools are typically managed within the storage system itself, while encryption is a data security feature that may be configured as part of the overall storage setup1.

The default logical block size when creating an XtremIO volume is 4 KB.

This block size is optimized for performance and efficiency, ensuring that the storage array can handle small random I/O operations effectively.

Properly configured block sizes are essential for achieving optimal performance in high-demand storage environments.

References:

Dell XtremIO X2 Technical Specifications

XtremIO Volume Configuration Guide

In a fully-populated Data Protection Group (DPG) with sufficient capacity, nine disk drives need to fail sequentially to stop the XtremIO X2 data services.

XtremIO is designed with high fault tolerance, and its architecture can withstand multiple disk failures while continuing to operate.

The system uses RAID and other data protection mechanisms to ensure data availability and integrity even in the event of multiple drive failures.

References:

Dell XtremIO X2 Technical Specifications

XtremIO Data Protection Documentation

In addition to PowerPath, the supported multipathing software for VMware ESXi hosts connecting to XtremIO is Native Multipathing (NMP).

NMP is integrated with VMware and provides basic multipathing capabilities, allowing for path redundancy and load balancing.

Properly configuring multipathing is crucial for achieving high availability and optimal performance in a VMware environment with XtremIO storage.

References:

Dell EMC Host Connectivity Guide for VMware ESXi

XtremIO Multipathing Configuration Documentation

When managing multiple XtremIO X2 clusters, it is accurate that a single XtremIO Management Server (XMS) can manage up to 16 X-Brick clusters. The XMS is a key component of the XtremIO environment, providing centralized management and monitoring capabilities for XtremIO clusters. Here’s a detailed explanation:

XMS Capabilities: The XMS is designed to manage multiple XtremIO clusters, offering a unified view and control over the entire storage environment.It allows administrators to perform various tasks such as provisioning, monitoring, and managing the clusters from a single interface1.

Scalability: The ability to manage up to 16 X-Brick clusters with a single XMS highlights the scalability of the XtremIO architecture.This scalability is essential for large-scale deployments where multiple clusters are used to meet performance and capacity requirements1.

Virtual and Physical XMS: The XMS can be deployed as either a physical server or a virtual machine (VM), providing flexibility in deployment options.Regardless of the deployment model, the XMS retains its capability to manage multiple clusters1.

XMCLI: While the XtremIO Management Command Line Interface (XMCLI) is used for managing clusters, it is not the only way to add or remove clusters.The XMS provides a graphical user interface (GUI) as well, which can also be used for these tasks1.

XtremIO X1 and X2 Compatibility: The statement regarding XtremIO X1 XMS managing XtremIO X2 clusters (OC) would require specific compatibility information, which typically depends on the software version and feature support2.

Limitations of Virtual XMS: The statement that a virtual XMS can manage up to four X-Brick clusters (OD) may not be accurate without specific context, as the capability can depend on the XMS version and the deployment configuration1.

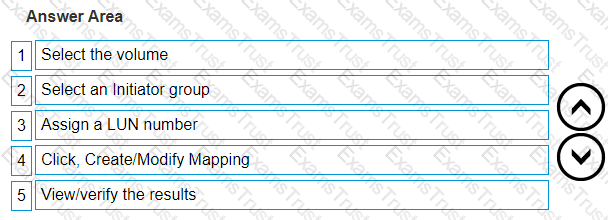

The correct sequence of steps to map a volume to a host using the XtremIO WebUI is:

Select the volume.

Select an initiator group.

Assign a LUN number.

Click ‘Create/Modify Mapping’.

View/verify the results.

To map a volume to a host in the XtremIO WebUI, you would follow these steps:

Select the volume: Navigate to the volume you wish to map and select it. This is the first step because you need to specify which volume you’re working with.

Select an initiator group: Choose the initiator group that corresponds to the host to which you want to map the volume. An initiator group contains one or more initiators that uniquely identify the host in the storage environment.

Assign a LUN number: Specify a Logical Unit Number (LUN) for the volume in this mapping. The LUN is an identifier for the volume in the context of the host to which it’s being mapped.

Click ‘Create/Modify Mapping’: After selecting the volume, initiator group, and assigning a LUN, you’ll execute the command to create the mapping by clicking this button.

View/verify the results: Finally, check the mapping to ensure that it has been successfully created and is functioning as expected.

This sequence of steps ensures that the volume is properly configured and connected to the host, allowing for efficient data management and access within the Dell XtremIO storage system.

The correct sequence of steps to create a Windows volume backup using the Microsoft VSS Framework with an XtremIO cluster is:

Requestor interacts with the VSS service to start the backup

VSS service sends a Freeze request to the Writer

Provider creates an XVC of the file system and exposes the volume to the host

VSS service sends a Thaw request to the Writer

Requestor uses the XVC to back up the content of the volume

This sequence ensures that the backup is consistent and data integrity is maintained throughout the process.

References:

Dell XtremIO VSS Integration Guide

Microsoft VSS Framework Documentation

Each X-Brick in an XtremIO environment requires at least one RecoverPoint Appliance (RPA) to manage replication tasks effectively.

RecoverPoint provides both synchronous and asynchronous replication, ensuring data integrity and disaster recovery capabilities.

The RPA is crucial for handling replication operations and maintaining data consistency across XtremIO clusters.

References:

Dell XtremIO Integration with RecoverPoint Documentation

Raid-Zero XtremIO and RecoverPoint Initial Findings
