Referring to the exhibit, your company’s infrastructure team implemented new printers. To make sure that the policy enforcer pushes the updated IP address list to the SRX, you need to perform the following actions:

• A. Configure the server feed URL as http://172.25.10.254/myprinters. The server feed URL is the address of the remote server that provides the custom feed data. You need to configure the server feed URL to match the location of the file that contains the IP addresses of the new printers. In this case, the file name is myprinters and the server IP address is 172.25.10.254, so the server feed URL should be http://172.25.10.254/myprinters1.
• B. Create a security policy that uses the dynamic address feed to allow access. A security policy is a rule that defines the action to be taken for the traffic that matches the specified criteria, such as source and destination addresses, zones, protocols, ports, and applications. You need to create a security policy that uses the dynamic address feed as the source or destination address to allow access to the new printers. A dynamic address feed is a custom feed that contains a group of IP addresses that can be entered manually or imported from external sources. The dynamic address feed can be used in security policies to either deny or allow traffic based on either source or destination IP criteria2.
• C. Configure Security Director to create a dynamic address feed. Security Director is a Junos Space application that enables you to create and manage security policies and objects. You need to configure Security Director to create a dynamic address feed that contains the IP addresses of the new printers. You can create a dynamic address feed by using the local file or the remote file server option. In this case, you should use the remote file server option and specify the server feed URL as http://172.25.10.254/myprinters3.

The other options are incorrect because:

• D. Configuring Security Director to create a C&C feed is not required to complete the requirement. A C&C feed is a security intelligence feed that contains the IP addresses of servers that are used by malware or attackers to communicate with infected hosts. The C&C feed is not related to the new printers or the dynamic address feed.
• E. Configuring the server feed URL as https://172.25.10.254/myprinters is not required to complete the requirement. The server feed URL can use either the HTTP or the HTTPS protocol, depending on the configuration of the remote server. In this case, the exhibit shows that the remote server is using the HTTP protocol, so the server feed URL should use the same protocol1.

References:

• Configuring the Server Feed URL
• Dynamic Address Overview
• Creating Custom Feeds
• [Command and Control Feed Overview]

To enable inter-tenant communication with tenant system, you need to use an external router or a logical tunnel interface. The other options are incorrect because:

• A. Interconnecting EVPN switch is not a valid solution for inter-tenant communication with tenant system. EVPN (Ethernet VPN) is a technology that provides layer 2 connectivity over an IP network. It can be used to connect different logical systems on the same device, but not tenant systems. Tenant systems are isolated from each other and do not share the same layer 2 domain1.
• B. Interconnecting VPLS switch is also not a valid solution for inter-tenant communication with tenant system. VPLS (Virtual Private LAN Service) is another technology that provides layer 2 connectivity over an IP network. It can also be used to connect different logical systems on the same device, but not tenant systems. Tenant systems are isolated from each other and do not share the same layer 2 domain1.

Therefore, the correct answer is C and D. You need to use an external router or a logical tunnel interface to enable inter-tenant communication with tenant system. To do so, you need to perform the following steps:

• For external router, you need to connect the external router to the interfaces of the tenant systems that you want to communicate with. You also need to configure the routing protocols and policies on the external router and the tenant systems to exchange routes and traffic. The external router acts as a gateway between the tenant systems and provides layer 3 connectivity2.
• For logical tunnel interface, you need to create a logical tunnel interface on the device and assign it to a tenant system. You also need to configure the IP address and routing protocols on the logical tunnel interface and the tenant systems that you want to communicate with. The logical tunnel interface acts as a virtual link between the tenant systems and provides layer 3 connectivity3.

References:

• Tenant Systems Overview
• Example: Configuring Inter-Tenant Communication Using External Router
• Example: Configuring Inter-Tenant Communication Using Logical Tunnel Interface

w.juniper.net/documentation/en_US/junos-space18.1/policy-enforcer/topics/task/configuration/junos-space-policyenforcer-custom-feeds-infected-host-configure.html

According to the trace options output in the exhibit, the following statements are correct:

• This packet is part of an existing session. This is indicated by the line flow session id 0x00000000, hash 0x00000000, table 0x00000000, flow process exit, which shows that the packet matches an existing session entry in the flow table1.
• The SRX device is changing the destination address on this packet from 10.0.1.1 to 172.20.101.10. This is indicated by the line nat: translated 10.0.1.1->172.20.101.10, which shows that the packet undergoes destination NAT2.

The following statements are incorrect:

• The SRX device is changing the source address on this packet. There is no indication of source NAT in the trace options output2.
• This is the first packet in the session. The first packet in a session would have a different trace options output, which would include the line flow_first_inline_processing and show the creation of a new session entry in the flow table1.

References: 1: SRX Getting Started – Troubleshooting Traffic Flows and Session Establishment 2: SRX Getting Started - Configure NAT (Network Address Translation)

To control access to network resources based on the identity of an authenticated device on the SRX Series firewalls, you need to perform the following steps:

• A. Configure an end-user-profile that characterizes a device or set of devices. An end-user-profile is a device identity profile that contains a collection of attributes that are characteristics of a specific group of devices, or of a specific device, depending on the attributes configured in the profile. The end-user-profile must contain a domain name and at least one value in each attribute. The attributes include device-identity, device-category, device-vendor, device-type, device-os, and device-os-version1. You can configure an end-user-profile by using the Junos Space Security Director or the CLI2.
• C. Reference the end-user-profile in the security policy. A security policy is a rule that defines the action to be taken for the traffic that matches the specified criteria, such as source and destination addresses, zones, protocols, ports, and applications. You can reference the end-user-profile in the source-end-user-profile field of the security policy to identify the traffic source based on the device from which the traffic issued. The SRX Series device matches the IP address of the device to the end-user-profile and applies the security policy accordingly3. You can reference the end-user-profile in the security policy by using the Junos Space Security Director or the CLI4.
• E. Configure the authentication source to be used to authenticate the device. An authentication source is a system that provides the device identity information to the SRX Series device. The authentication source can be Microsoft Windows Active Directory or a third-party network access control (NAC) system. You need to configure the authentication source to be used to authenticate the device and to send the device identity information to the SRX Series device. The SRX Series device stores the device identity information in the device identity authentication table5. You can configure the authentication source by using the Junos Space Security Director or the CLI6.

The other options are incorrect because:

• B. Referencing the end-user-profile in the security zone is not a valid step to control access to network resources based on the identity of an authenticated device. A security zone is a logical grouping of interfaces that have similar security requirements. You can reference the user role in the security zone to identify the user who is accessing the network resources, but not the end-user-profile7.
• D. Applying the end-user-profile at the interface connecting the devices is also not a valid step to control access to network resources based on the identity of an authenticated device. You cannot apply the end-user-profile at the interface level, but only at the security policy level. The end-user-profile is not a firewall filter or a security policy, but a device identity profile that is referenced in the security policy1.

References:

• End User Profile Overview
• Creating an End User Profile
• source-end-user-profile
• Creating Firewall Policy Rules
• Understanding the Device Identity Authentication Table and Its Entries
• Configuring the Authentication Source for Device Identity
• user-role

According to the Juniper documentation, a tenant system is a logical system that supports routing, services, and security features. A tenant system can be configured to log binary security events to a remote server using the pi security profile. The pi security profile specifies the tenant name, the server address, the server port, and the protocol for logging binary security events. In the exhibit, the pi security profile is configured with the server address 10.0.0.1, the server port 514, and the protocol UDP. However, the tenant name is missing from the configuration. To complete the configuration, the tenant name must be configured as local for the pi security profile. This is because the local tenant name is used to identify the tenant system that is sending the binary security events to the remote server. Therefore, the correct statement to complete the configuration is D. Configure the tenant as local for the pi security profile. References: [Tenant Systems Overview] 1, [Configuring Binary Security Event Logging for Tenant Systems] 2

1: 2:

According to the exhibit, which is a configuration snippet of the SRX Series device, the global mode for the device is set to switching mode. This means that the device is operating as a Layer 2 switch and does not apply any security policies to the traffic between hosts in the same broadcast domain1. Therefore, the traffic between two hosts in the same broadcast domain are not matching any security policies.

To solve this problem, the user should change the global mode to transparent bridge mode. This means that the device will operate as a Layer 2 transparent bridge and apply security policies to the traffic between hosts in the same broadcast domain2. This will allow the user to enforce security policies based on the source and destination IP addresses, ports, and protocols of the traffic.

To change the global mode to transparent bridge mode, the user should use the following command:

set protocols l2-learning global-mode transparent-bridge

This command will set the global mode for the SRX Series device as Layer 2 transparent bridge mode. After changing the mode, the user must reboot the device for the configuration to take effect2.

References: 1: global-mode (Protocols) 2: Configuring Layer 2 Transparent Mode

DNS doctoring is a feature that allows the SRX Series firewall to modify the IP address in a DNS response based on a static NAT rule. This can be useful when the DNS server returns an IP address that is not reachable by the client, such as a private IP address or an IP address from a different network. To use DNS doctoring, the following requirements must be met:

• The DNS ALG must be enabled. The DNS ALG is responsible for parsing the DNS messages and performing the IP address translation. The DNS ALG can be enabled globally or per security policy. To enable the DNS ALG globally, use the command set security alg dns enable. To enable the DNS ALG per security policy, use the command set security policies from-zone zone1 to-zone zone2 policy policy1 then permit application-services application-firewall rule-set rule-set-name application junos-dns.
• Static NAT must be configured for the IP address that needs to be translated. Static NAT is a type of NAT that maps a fixed IP address to another fixed IP address. Static NAT can be configured using the command set security nat static rule-set rule-set-name rule rule-name match destination-address address and set security nat static rule-set rule-set-name rule rule-name then static-nat prefix prefix. References:
• DNS ALG and Doctoring Support
• Understanding DNS ALG and NAT Doctoring
• Disabling DNS ALG and NAT Doctoring
• SRX Getting Started - Configure DNS

According to the Juniper documentation, the steps to detect domain generation algorithms (DGA) on an SRX Series firewall are as follows:

• Define a security-metadata-streaming policy under [edit services]. A security-metadata-streaming policy is a configuration that enables the SRX Series firewall to collect and stream security metadata, such as DNS queries and responses, to Juniper ATP Cloud for analysis. Juniper ATP Cloud uses machine learning models and known pre-computed DGA domain names to provide domain verdicts, which helps in-line blocking and sinkholing of DNS queries on SRX Series firewalls1. You can define a security-metadata-streaming policy by using the following command:

set services security-metadata-streaming policy

• Attach the security-metadata-streaming policy to a security zone. A security zone is a logical grouping of interfaces that have similar security requirements. You can attach the security-metadata-streaming policy to a security zone by using the following command:

set security zones security-zone services security-metadata-streaming policy

The following steps are not required or incorrect:

• Define an advanced-anti-malware policy under [edit services]. An advanced-anti-malware policy is a configuration that enables the SRX Series firewall to scan files for malware using Juniper ATP Cloud. It is not related to DGA detection2.
• Attach the advanced-anti-malware policy to a security policy. A security policy is a configuration that defines the rules for permitting or denying traffic between security zones. It is not related to DGA detection3.

References: 1: Configuring Security Metadata Streaming 2: Configuring Advanced Anti-Malware Policies 3: Configuring Security Policies

The two steps that will fulfill the requirement of deploying a security policy on an SRX Series device that blocks all known Tor network IP addresses are enrolling the devices with Juniper ATP Cloud and enabling a third-party Tor feed. Juniper ATP Cloud is a cloud-based service that provides advanced threat detection and mitigation capabilities for SRX Series devices. By enrolling the devices with Juniper ATP Cloud, the devices can leverage the cloud intelligence and analytics to identify and block malicious traffic, including Tor traffic. A third-party Tor feed is a source of information that provides a list of IP addresses that are associated with the Tor network. By enabling a third-party Tor feed on the SRX Series device, the device can use the feed to create a dynamic address object that contains all the known Tor IP addresses. The device can then apply a security policy that denies traffic from or to the dynamic address object, effectively blocking the Tor network IP addresses. References: Juniper Security, Professional (JNCIP-SEC) Reference Materials source and documents:

The Juniper ATP Appliance platform collects, inspects and analyzes advanced and stealthy web, file, and email-based threats that exploit and infiltrate client browsers, operating systems, emails and applications. Juniper ATP Appliance’s detection of malicious attacks generates incident and event details that can be sent to connected SIEM platforms in CEF, LEEF or Syslog formats1. CEF (Common Event Format) is an open log management standard that improves the interoperability of security-related information from different vendors2. Juniper ATP Appliance supports CEF format for sending events and system audit notifications to SIEM servers. You can configure the CEF format in the Juniper ATP Appliance Central Manager WebUI Config > Notifications > SIEM Settings1. Therefore, the correct answer is C. CEF is a supported logging output format for Juniper ATP Appliance. The other options are incorrect because:

• A. WELF (WebTrends Enhanced Log Format) is a proprietary log format developed by WebTrends Corporation for web analytics3. Juniper ATP Appliance does not support WELF format for SIEM integration.
• B. JSON (JavaScript Object Notation) is a lightweight data-interchange format that is easy for humans and machines to read and write4. Juniper ATP Appliance supports JSON format for HTTP API results, but not for SIEM notifications1.
• D. Binary is a numeric system that uses only two digits: 0 and 1. Binary is not a logging output format for Juniper ATP Appliance or any SIEM platform.

References:

• SIEM Syslog, LEEF and CEF Logging
• Common Event Format Configuration Guide
• WebTrends Enhanced Log Format
• JSON

To troubleshoot the traffic problem using the match criteria, you need to use the show security match-policies CLI command. The other options are incorrect because:

• A. The show security policy-report CLI command displays the policy report, which is a summary of the policy usage statistics, such as the number of sessions, bytes, and packets that match each policy. It does not show the match criteria or the reason why the traffic is not hitting the policy1.
• B. The show security application-tracking counters CLI command displays the application tracking counters, which are the statistics of the application usage, such as the number of sessions, bytes, and packets that match each application. It does not show the match criteria or the reason why the traffic is not hitting the policy2.
• D. The request security policies check CLI command checks the validity and consistency of the security policies, such as the syntax, the references, and the conflicts. It does not show the match criteria or the reason why the traffic is not hitting the policy3.

Therefore, the correct answer is C. You need to use the show security match-policies CLI command to troubleshoot the traffic problem using the match criteria. The show security match-policies CLI command displays the policies that match the specified criteria, such as the source and destination addresses, the zones, the protocols, and the ports. It also shows the action and the hit count of each matching policy. You can use this command to verify if the traffic is matching the expected policy or not, and if not, what policy is blocking or rejecting the traffic4

An IKE security association (SA) is a set of parameters that define how the Internet Key Exchange (IKE) protocol will authenticate and establish the secure channel between the IPsec VPN peers. When you configure an IPsec VPN, one IKE SA is created between the peers, regardless of how many CoS forwarding classes are used to separate the traffic. The SA will be used to negotiate the IPsec SA parameters, such as encryption algorithms and keys.

In this scenario, only 1 IKE security association is required between the IPsec peers, no matter how many CoS forwarding classes are used to separate the voice and data traffic.

According to the Juniper documentation, a custom block list feed is a user-defined list of IP addresses or URLs that are considered malicious or unwanted. A custom block list feed can be configured to override the default Juniper Seclntel block list feed, which is a cloud-based service that provides a list of known malicious IP addresses and URLs. To override the Juniper Seclntel block list feed, the custom block list feed must have a higher priority value than the Juniper Seclntel block list feed. In the exhibit, the custom block list feed has a priority value of 10, which is higher than the default priority value of 5 for the Juniper Seclntel block list feed. Therefore, this custom block list feed will be used instead of the Juniper Seclntel block list feed. References: : [Configuring Custom Block List Feeds]

interface/td-p/462528

To solve the problem of the operator user being unable to save configuration files to a USB stick that is plugged into SRX, you need to add the system-control permission flag to the operations class. The other options are incorrect because:

• A. Adding the floppy permission flag to the operations class is not sufficient or necessary to save configuration files to a USB stick. The floppy permission flag allows the user to access the floppy drive, but not the USB drive. The USB drive is accessed by the system permission flag, which is already included in the operations class1.
• C. Adding the interface-control permission flag to the operations class is also not sufficient or necessary to save configuration files to a USB stick. The interface-control permission flag allows the user to configure and monitor interfaces, but not to save configuration files. The configuration permission flag, which is also already included in the operations class, allows the user to save configuration files1.
• D. Adding the system permission flag to the operations class is redundant and ineffective to save configuration files to a USB stick. The system permission flag allows the user to access the system directory, which includes the USB drive. However, the operations class already has the system permission flag by default1. The problem is not the lack of system permission, but the lack of system-control permission.

Therefore, the correct answer is B. You need to add the system-control permission flag to the operations class to solve the problem. The system-control permission flag allows the user to perform system-level operations, such as rebooting, halting, or snapshotting the device1. These operations are required to mount, unmount, and copy files to and from the USB drive2. To add the system-control permission flag to the operations class, you need to perform the following steps:

• Enter the configuration mode: user@host> configure
• Navigate to the system login class hierarchy: user@host# edit system login class operations
• Add the system-control permission flag: user@host# set permissions system-control
• Commit the changes: user@host# commit

References:

• login (System)
• How to mount a USB drive on EX/SRX/MX/QFX Series platforms to import/export files

This is the port used for encrypted communication between the SRX series device and the Juniper ATP Appliance

In order to enroll an SRX Series device with Juniper ATP Appliance, the firewall device must have port 443 open. Port 443 is the default port used for HTTPS traffic, the communication between the SRX Series device and the ATP Appliance needs to be encrypted, that's why this port should be opened.

A company wants to partition their physical SRX series firewall into multiple logical units and assign each unit (tenant) to a department within the organization. You are the primary administrator of the firewall and a colleague is the administrator for one of the departments. The two statements that are correct about your colleague are:

• B. The colleague can access and view the resources of the tenant system. A tenant system is a type of logical system that is created and managed by the primary administrator of the firewall. A tenant system has its own discrete administrative domain, logical interfaces, routing instances, security policies, and other features. The primary administrator can assign a tenant system to a department within the organization and delegate the administration of the tenant system to a colleague. The colleague can access and view the resources of the tenant system, such as the allocated CPU, memory, and bandwidth, and the configured interfaces, zones, and policies1.
• C. The colleague can create and assign logical interfaces to the tenant system. A logical interface is a software interface that represents a subset of the physical interface. A logical interface can have its own address, encapsulation, and routing parameters. The primary administrator can allocate a number of logical interfaces to a tenant system and allow the colleague to create and assign logical interfaces to the tenant system. The colleague can configure the logical interfaces with the appropriate address, encapsulation, and routing parameters for the tenant system2.

The other statements are incorrect because:

• A. The colleague cannot configure the resources allocated and routing protocols. The resources allocated and routing protocols are configured by the primary administrator of the firewall. The primary administrator can allocate a fixed amount of resources, such as CPU, memory, and bandwidth, to a tenant system and specify the routing protocols that are allowed for the tenant system. The colleague cannot modify the resources allocated or routing protocols for the tenant system1.
• D. The colleague cannot modify the number of allocated resources for the tenant system. The number of allocated resources for the tenant system is configured by the primary administrator of the firewall. The primary administrator can allocate a fixed amount of resources, such as CPU, memory, and bandwidth, to a tenant system and monitor the resource usage of the tenant system. The colleague cannot modify the number of allocated resources for the tenant system1.

References:

• Understanding Tenant Systems
• Understanding Logical Interfaces

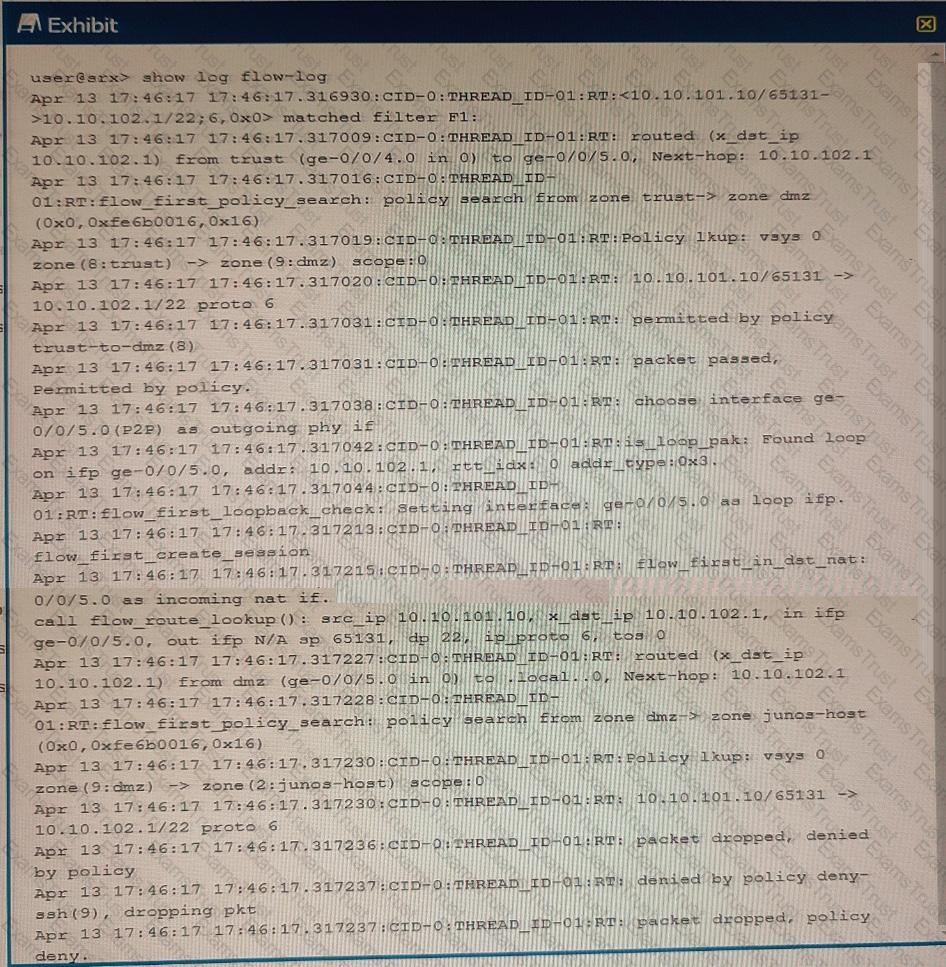

According to the security flow trace in the exhibit, the packets are dropped for self but not interested. This means that the SRX device is receiving packets destined to itself, but it does not have the corresponding service configured in the host-inbound-traffic stanza for the interface1. In this case, the service is BGP, which uses TCP port 179. Therefore, the correct action to solve the problem on the SRX device is to add BGP to the allowed host-inbound-traffic for the interface. This can be done by using the following command:

set security zones security-zone interfaces host-inbound-traffic system-services bgp

This command will allow the SRX device to accept BGP packets on the specified interface and zone. Alternatively, the command can be applied to all interfaces in a zone by using the all-interfaces option2.

References: 1: SRX Getting Started - Troubleshoot Security Policy 2: Configuring System Services Allowed for Host Inbound Traffic

&id=KB30443&cat=SRX_SERIES&actp=LIST

Proxy ARP is a technique used by routers to answer ARP requests on one network segment on behalf of hosts on another network segment. This is useful in situations where a host on one network segment needs to communicate with a host on another network segment, but the two hosts are not directly connected. In this case, the router acts as a proxy, answering ARP requests on behalf of the other host. In the exhibit, the vSRX device is configured to use a pool of addresses that are in the same subnet as the external interface ge-0/0/0 for source NAT. This means that the vSRX device will translate the source IP address of the internal hosts to one of the addresses in the pool before sending the packets to the external network. However, the external hosts will not know how to reach the NATed addresses, since they are not directly connected to the vSRX device. They will send ARP requests for the NATed addresses, expecting to receive a MAC address from the vSRX device. If proxy ARP is not enabled on the vSRX device, it will not respond to these ARP requests, since it does not have the NATed addresses configured on its interface. The ARP requests will time out and the packets will be dropped by the external hosts or the service provider router. To solve this problem, proxy ARP must be enabled on the vSRX device for the NATed addresses. This will allow the vSRX device to respond to the ARP requests from the external hosts, providing its own MAC address as the destination. The external hosts will then send the packets to the vSRX device, which will reverse the NAT and forward the packets to the internal hosts. References:

• Configuring Proxy ARP (CLI Procedure)
• [SRX] When and how to configure Proxy ARP (https://supportportal.juniper.net/s/article/SRX-Dynamic-VPN-scenario-for-configuring-Proxy-ARP-on-SRX?language=en_US)

Source NAT is a type of NAT that is used to translate the source IP address and port number of a packet. This is typically used to allow multiple devices on a private network to access the internet using a single public IP address. In the exhibit, we can see that the source IP address and port number of the packet are being translated from 10.10.10.2/61606 to 203.0.113.100/179. This is a clear indication that Source NAT is being performed. References:

• Network Address Translation Feature Guide
• SRX NAT with Illustrated Examples

• The SRX Series device is performing both source and destination NAT on this session because the traceoptions output shows that both source and destination IP addresses and ports are translated. The source IP address 192.168.5.2 is translated to 192.168.100.1 and the destination IP address 1.1.1.1 is translated to 192.168.5.1. The source port 0 is translated to 14777 and the destination port 80 is translated to 80. The traceoptions output also shows the rule and pool IDs for both source and destination NAT: 2/32770 and 1/1 respectively.
• This is the first packet in the session because the traceoptions output shows the flag flow_first_packet, which indicates that this is the first packet of a new session. The traceoptions output also shows the flag flow_first_src_xlate and flow_first_rule_dst_xlate, which indicate that this is the first time that source and destination NAT are applied to this session.

References:

• traceoptions (Security NAT) | Junos OS | Juniper Networks
• [SRX] How to interpret Flow TraceOptions output for NAT troubleshooting

The security feature that bypasses routing or switching lookup is transparent mode. The other options are incorrect because:

• B. Secure wire is a feature that allows you to connect two interfaces on the same device and forward traffic between them without any processing. Secure wire does not bypass routing or switching lookup, but rather eliminates them altogether1.
• C. Mixed mode is a mode of operation for SRX Series devices that allows you to configure both transparent mode and switching mode on the same device. Mixed mode does not bypass routing or switching lookup, but rather uses them depending on the interface type2.
• D. MACsec (Media Access Control Security) is a feature that provides encryption and authentication for Layer 2 traffic. MACsec does not bypass routing or switching lookup, but rather operates at a lower layer3.

Therefore, the correct answer is A. Transparent mode is a mode of operation for SRX Series devices that provides Layer 2 bridging capabilities with full security services. In transparent mode, the SRX Series device acts as a bridge between two network segments and inspects the packets without modifying the source or destination information in the IP packet header. The SRX Series device does not have an IP address in transparent mode, except for the management interface. Transparent mode bypasses routing or switching lookup, because the SRX Series device does not perform any routing or switching functions, but rather forwards the packets based on the MAC addresses4.

References:

• Secure Wire Overview
• Mixed Mode Overview
• MACsec Overview
• Transparent Mode Overview

To provide single sign-on (SSO) to Juniper ATP Cloud, you need to configure the following:

• Microsoft Azure as the identity provider (IdP): This allows users to authenticate to Juniper ATP Cloud using their Azure credentials.
• Juniper ATP Cloud as the service provider (SP): This allows Juniper ATP Cloud to accept the authentication from Microsoft Azure and provide SSO access to the users.

Configuring Microsoft Azure as the service provider (SP) and Juniper ATP Cloud as the identity provider (IdP) are not the correct steps to provide SSO, as the roles are reversed.

You must set up a DDoS solution for your ISP. The solution must be agile and not block legitimate traffic. The two products that will accomplish this task are:

• B. MX Series device. MX Series devices are high-performance routers that can provide DDoS protection at the network edge by integrating with Corero SmartWall Threat Defense Director (TDD) software. MX Series devices can leverage the packet processing capabilities of the MX-SPC3 Services Card to perform real-time DDoS detection and mitigation at line rate, scaling from 50 Gbps to 40 Tbps. MX Series devices can also use Juniper Networks Security Intelligence (SecIntel) to receive threat intelligence feeds from Juniper ATP Cloud or Juniper Threat Labs and apply them to the security policies. MX Series devices can provide an agile and effective DDoS solution for your ISP without blocking legitimate traffic12.
• C. Corero SmartWall TDD. Corero SmartWall TDD is a software solution that runs on MX Series devices and PTX Series devices to provide DDoS protection at the network edge. Corero SmartWall TDD uses behavioral analytics and detailed network visibility to detect and block DDoS attacks in seconds, without affecting the normal traffic. Corero SmartWall TDD can also provide advanced protection from “carpet bombing” attacks, 5G DDoS visibility, and multi-tenant portal for as-a-service offerings or views by department within an enterprise. Corero SmartWall TDD can provide an agile and effective DDoS solution for your ISP without blocking legitimate traffic34.

The other options are incorrect because:

• A. Contrail Insights. Contrail Insights is a software solution that provides network analytics and visibility for cloud and data center environments. Contrail Insights can help you monitor, troubleshoot, and optimize the performance and security of your network, but it does not provide DDoS protection by itself. Contrail Insights can integrate with other Juniper products, such as Contrail Enterprise Multicloud, Contrail Service Orchestration, and AppFormix, to provide a comprehensive network management solution, but it is not a DDoS solution for your ISP5.
• D. SRX Series device. SRX Series devices are high-performance firewalls that can provide DDoS protection at the network perimeter by integrating with Juniper ATP Cloud and Juniper Threat Labs. SRX Series devices can use SecIntel to receive threat intelligence feeds from Juniper ATP Cloud or Juniper Threat Labs and apply them to the security policies. SRX Series devices can also use IDP to detect and prevent application-level attacks, such as SQL injection, cross-site scripting, and buffer overflow. SRX Series devices can provide a robust and effective DDoS solution for your network, but they are not designed to handle high-volume DDoS attacks at the network edge, as MX Series devices and Corero SmartWall TDD are .

References:

• Juniper and Corero Joint DDoS Protection Solution
• MX-SPC3 Services Card Overview
• Corero SmartWall Threat Defense Director (TDD)
• Juniper Networks and Corero: A Modern Approach to DDoS Protection at Scale
• Contrail Insights Overview
• [SRX Series Services Gateways]
• [Juniper Networks Security Intelligence (SecIntel)]

ofile-logical-system.html

The command "show security dynamic-address category-name DS hield" will show the IP addresses that are part of the DS hield category. By filtering the output of this command with the "match 203.0.113.5" command, you can determine if the IP address 203.0.113.5 is part of the DS hield feed. This command will check the feeds that are configured on SRX Series device and are associated to juniper ATP Cloud.

The correct action to solve this problem on the SRX device is to refresh the feed in ATP Cloud. This is because the number of IP address entries in the monitoring section of the Juniper ATP Cloud portal does not match the number of entries locally on the SRX Series device. This discrepancy can be caused by a number of factors, such as the SRX device not being properly configured for Adaptive Threat Profiling, or the feed not being properly downloaded from the Juniper ATP Cloud portal. By refreshing the feed in ATP Cloud, the SRX device can synchronize its local feed with the latest feed from the cloud service and ensure that the entries are consistent and accurate. References: Juniper Security, Professional (JNCIP-SEC) Reference Materials source and documents:
