MuleSoft MCPA-Level-1 MuleSoft Certified Platform Architect - Level 1 Exam Practice Test

Explanation

Correct Answer: System Layer

The APIs used in an API-led approach to connectivity fall into three categories:

System APIs – these usually access the core systems of record and provide a means of insulating the user from the complexity or any changes to the underlying systems. Once built, many users, can access data without any need to learn the underlying systems and can reuse these APIs in multiple projects.

Process APIs – These APIs interact with and shape data within a single system or across systems (breaking down data silos) and are created here without a dependence on the source systems from which that data originates, as well as the target channels through which that data is delivered.

Experience APIs – Experience APIs are the means by which data can be reconfigured so that it is most easily consumed by its intended audience, all from a common data source, rather than setting up separate point-to-point integrations for each channel. An Experience API is usually created with API-first design principles where the API is designed for the specific user experience in mind.

Explanation

Correct Answer: They must be deployed to Anypoint Platform runtime planes that are managed by Anypoint Platform control planes, with both planes in the same Jurisdiction.

*****************************************

>> As per legal regulations, all data processing to be performed within a certain jurisdiction. Meaning, the data in USA should reside within USA and should not go out. Same way, the data in EU should reside within EU and should not go out.

>> So, just encrypting the data in transit and at rest does not help to be compliant with the rules. We need to make sure that data does not go out too.

>> The data that we are talking here is not just about the messages that are published to Anypoint MQ. It includes the apps running, transaction states, application logs, events, metric info and any other metadata. So, just replacing Anypoint MQ with a locally hosted ActiveMQ does NOT help.

>> The data that we are talking here is not just about the key/value pairs that are stored in Object Store. It includes the messages published, apps running, transaction states, application logs, events, metric info and any other metadata. So, just avoiding using Object Store does NOT help.

>> The only option left and also the right option in the given choices is to deploy application on runtime and control planes that are both within the jurisdiction.

Explanation

Correct Answer: Option A

*****************************************

>> Anypoint API Manager and API policies are applicable to all types of HTTP/1.x APIs.

>> They are not applicable to WebSocket APIs, HTTP/2 APIs and gRPC APIs

Explanation

Correct Answer: The SSL certificates used by the API implementation to expose HTTPS endpoints

*****************************************

>> The assignment of each HTTP request to a particular CloudHub worker is taken care by Anypoint Platform itself. We need not manage it explicitly in the API implementation and in fact we CANNOT manage it in the API implementation.

>> The logging configuration that enables log entries to be visible in Runtime Manager is ALWAYS managed in the API implementation and NOT just for SLB. So this is not something we do EXCLUSIVELY when using SLB.

>> We DO NOT manage the number of DNS entries allocated to the API implementation inside the code. Anypoint Platform takes care of this.

It is the SSL certificates used by the API implementation to expose HTTPS endpoints that is to be managed EXCLUSIVELY by the API implementation. Anypoint Platform does NOT do this when using SLBs.

Explanation

Correct Answer: API Design and Development, API Runtime Execution and Hosting, API Operations and Management, API Consumer Engagement

*****************************************

>> API Design and Development - Anypoint Studio, Anypoint Design Center, Anypoint Connectors

>> API Runtime Execution and Hosting - Mule Runtimes, CloudHub, Runtime Services

>> API Operations and Management - Anypoint API Manager, Anypoint Exchange

>> API Consumer Management - API Contracts, Public Portals, Anypoint Exchange, API Notebooks

Explanation

Correct Answer: When development is already organized into several independent initiatives or groups

*****************************************

>> It would require lot of process effort in an organization to have a single C4E team coordinating with multiple already organized development teams which are into several independent initiatives. A single C4E works well with different teams having at least a common initiative. So, in this scenario, federated C4E works well instead of centralized C4E.

Explanation

Correct Answer: From the Mule runtime irrespective of the deployment model

*****************************************

>> Monitoring and Alerting metrics are always originated from Mule Runtimes irrespective of the deployment model.

>> It may seems that some metrics (Runtime Manager) are originated from Mule Runtime and some are (API Invocations/ API Analytics) from API Manager. However, this is realistically NOT TRUE. The reason is, API manager is just a management tool for API instances but all policies upon applying on APIs eventually gets executed on Mule Runtimes only (Either Embedded or API Proxy).

>> Similarly all API Implementations also run on Mule Runtimes.

So, most of the day required for monitoring and alerts are originated fron Mule Runtimes only irrespective of whether the deployment model is MuleSoft-hosted or Customer-hosted or Hybrid.

Explanation

Correct Answer: Implement required changes to the Process API implementation so that, whenever possible, the Process API’s RAML definition remains unchanged.

*****************************************

Key requirement in the question is:

>> Approach that minimizes the impact of this change on API clients

Based on above:

>> Updating the RAML definition would possibly impact the API clients if the changes require any thing mandatory from client side. So, one should try to avoid doing that until really necessary.

>> Implementing the changes as a completely different API and then redirectly the clients with 3xx status code is really upsetting design and heavily impacts the API clients.

>> Organisations and IT cannot simply postpone the changes required until all API consumers acknowledge they are ready to migrate to a new Process API or API version. This is unrealistic and not possible.

The best way to handle the changes always is to implement required changes to the API implementations so that, whenever possible, the API’s RAML definition remains unchanged.

Explanation

Correct Answer: Use a horizontal CloudHub autoscaling policy that triggers on CPU utilization greater than 70%

*****************************************

The scenario in the question is very clearly stating that the usual traffic in the year is pretty well handled by the existing worker configuration with CPU running well below 70%. The problem occurs only "sometimes" occasionally when there is spike in the number of orders coming in.

So, based on above, We neither need to permanently increase the size of each worker nor need to permanently increase the number of workers. This is unnecessary as other than those "occasional" times the resources are idle and wasted.

We have two options left now. Either to use horizontal Cloudhub autoscaling policy to automatically increase the number of workers or to use vertical Cloudhub autoscaling policy to automatically increase the vCore size of each worker.

Here, we need to take two things into consideration:

1. CPU

2. Order Submission Rate to JMS Queue

>> From CPU perspective, both the options (horizontal and vertical scaling) solves the issue. Both helps to bring down the usage below 90%.

>> However, If we go with Vertical Scaling, then from Order Submission Rate perspective, as the application is still being load balanced with two workers only, there may not be much improvement in the incoming request processing rate and order submission rate to JMS queue. The throughput would be same as before. Only CPU utilization comes down.

>> But, if we go with Horizontal Scaling, it will spawn new workers and adds extra hand to increase the throughput as more workers are being load balanced now. This way we can address both CPU and Order Submission rate.

Hence, Horizontal CloudHub Autoscaling policy is the right and best answer.

Explanation

Correct Answer: Implement different system APIs named createCustomer, amendCustomer, retrieveCustomer and suspendCustomer as they are modular and has seperation of concerns

*****************************************

>> It is quite normal to have a single API and different Verb + Resource combinations. However, this fits well for an Experience API or a Process API but not a best architecture style for System APIs. So, option with just one customerManagement API is not the best choice here.

>> The option with APIs in createCustomerInCRMZ format is next close choice w.r.t modularization and less maintenance but the naming of APIs is directly coupled with the legacy system. A better foreseen approach would be to name your APIs by abstracting the backend system names as it allows seamless replacement/migration of any backend system anytime. So, this is not the correct choice too.

>> createCustomer, amendCustomer, retrieveCustomer and suspendCustomer is the right approach and is the best fit compared to other options as they are both modular and same time got the names decoupled from backend system and it has covered all requirements a System API needs.

Explanation

Correct Answer:

1. App Developers owns and focuses on Experience Layer APIs

2. LOB IT owns and focuses on Process Layer APIs

3. Central IT owns and focuses on System Layer APIs

References:

Explanation

Correct Answer: Spike control

*****************************************

>> First things first, HTTP Caching policy is for purposes different than avoiding the backend system from overloading. So this is OUT.

>> Rate Limiting and Throttling/ Spike Control policies are designed to limit API access, but have different intentions.

>> Rate limiting protects an API by applying a hard limit on its access.

>> Throttling/ Spike Control shapes API access by smoothing spikes in traffic.

That is why, Spike Control is the right option.

Correct Answer: Persistent Object Store

*****************************************

>> Redis distributed cache is performant but NOT out-of-the-box solution in Anypoint Platform

>> File-storage is neither performant nor out-of-the-box solution in Anypoint Platform

>> java.util.WeakHashMap needs a completely custom implementation of cache from scratch using Java code and is limited to the JVM where it is running. Which means the state in the cache is not worker aware when running on multiple workers. This type of cache is local to the worker. So, this is neither out-of-the-box nor worker-aware among multiple workers on cloudhub.

>> Persistent Object Store is an out-of-the-box solution provided by Anypoint Platform which is performant as well as worker aware among multiple workers running on CloudHub.

So, Persistent Object Store is the right answer.

Explanation

Correct Answer: At the process and system tiers

*****************************************

>> Experience Layer APIs are modeled and designed exclusively for the end user's experience. So, the data models of experience layer vary based on the nature and type of such API consumer. For example, Mobile consumers will need light-weight data models to transfer with ease on the wire, where as web-based consumers will need detailed data models to render most of the info on web pages, so on. So, enterprise data models fit for the purpose of canonical models but not of good use for experience APIs.

>> That is why, EDMs should be used extensively in process and system tiers but NOT in experience tier.

Explanation

Correct Answer: XML over HTTP

*****************************************

>> API-led connectivity and Application Networks urge to have the APIs on HTTP based protocols for building most effective APIs and networks on top of them.

>> The HTTP based APIs allow the platform to apply various varities of policies to address many NFRs

>> The HTTP based APIs also allow to implement many standard and effective implementation patterns that adhere to HTTP based w3c rules.

Bottom of Form

Top of Form

Explanation

Correct Answer: Guarding against Denial of Service attacks

*****************************************

>> Backend system overloading can be handled by enforcing "Spike Control Policy"

>> Logging HTTP requests and responses can be done by enforcing "Message Logging Policy"

>> Credentials can be tamper-proofed using "Security" and "Compliance" Policies

However, unfortunately, there is no proper way currently on Anypoint Platform to guard against DOS attacks.

Explanation

Correct Answer: Use a combination of CloudHub-deployed and manually provisioned on-premises Mule runtimes managed by the MuleSoft-hosted Platform control plane.

*****************************************

Key details to be taken from the given scenario:

>> Organization uses BOTH cloud-based and on-premises systems

>> On-premises systems can only be accessed from within the organization's intranet

Let us evaluate the given choices based on above key details:

>> CloudHub-deployed Mule runtimes can ONLY be controlled using MuleSoft-hosted control plane. We CANNOT use Private Cloud Edition's control plane to control CloudHub Mule Runtimes. So, option suggesting this is INVALID

>> Using CloudHub-deployed Mule runtimes in the shared worker cloud managed by the MuleSoft-hosted Anypoint Platform is completely IRRELEVANT to given scenario and silly choice. So, option suggesting this is INVALID

>> Using an on-premises installation of Mule runtimes that are completely isolated with NO external network access, managed by the Anypoint Platform Private Cloud Edition control plane would work for On-premises integrations. However, with NO external access, integrations cannot be done to SaaS-based apps. Moreover CloudHub-hosted apps are best-fit for integrating with SaaS-based applications. So, option suggesting this is BEST WAY.

The best way to configure and use Anypoint Platform to support these mixed/hybrid integrations is to use a combination of CloudHub-deployed and manually provisioned on-premises Mule runtimes managed by the MuleSoft-hosted Platform control plane.

Explanation

Correct Answer: The visibility level of the API instances of that API that need to be publicly accessible should be set to public visibility.

*****************************************

Explanation

Correct Answer: The remaining capacity allowed by the API implementation.

*****************************************

>> Reference:

Explanation

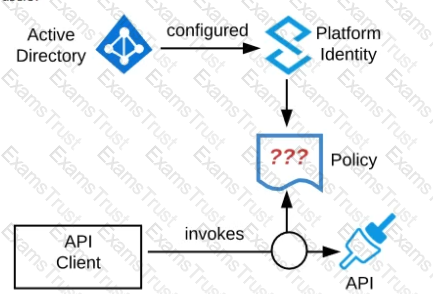

Correct Answer: Apply a basic authentication - LDAP policy; the internal Active Directory will be configured as the LDAP source for authenticating users.

*****************************************

>> IP Whitelisting does NOT fit for this purpose. Moreover, the users workstations may not necessarily have static IPs in the network.

>> OAuth 2.0 enforcement requires a client provider which isn't in the organizations system components.

>> It is not an effective approach to let every user create separate client credentials and configure those for their usage.

The effective way it to apply a basic authentication - LDAP policy and the internal Active Directory will be configured as the LDAP source for authenticating users.

Explanation

Correct Answer: At the API proxy

*****************************************

>> API Policies can be enforced at two places in Mule platform.

>> One - As an Embedded Policy enforcement in the same Mule Runtime where API implementation is running.

>> Two - On an API Proxy sitting in front of the Mule Runtime where API implementation is running.

>> As the deployment scenario in the question has API Proxy involved, the policies will be enforced at the API Proxy.

Explanation

Correct Answer: Apply a JSON threat protection policy to all APIs to detect potential threat vectors

*****************************************

>> Usually, if the APIs are designed and developed for specific consumers (known consumers/customers) then we would IP Whitelist the same to ensure that traffic only comes from them.

>> However, as this scenario states that the APIs are publicly available and being used by so many mobile and web applications, it is NOT possible to identify and blacklist all possible bad actors.

>> So, JSON threat protection policy is the best chance to prevent any bad JSON payloads from such bad actors.

Explanation

Correct Answer: By default, the Anypoint CLI and Mule Maven plugin are NOT included in the Mule runtime, so are NOT available to be used by deployed Mule applications

*****************************************

>> We CANNOT apply API policies to the Anypoint Platform APIs like we can do on our custom written API instances. So, option suggesting this is FALSE.

>> Anypoint Platform APIs can be used for automating interactions with both CloudHub and customer-hosted Mule runtimes. Not JUST the CloudHub. So, option opposing this is FALSE.

>> Mule Maven plugin is NOT mandatory for deployment to customer-hosted Mule runtimes. It just helps your CI/CD to have smoother automation. But not a compulsory requirement to deploy. So, option opposing this is FALSE.

>> We DO NOT have any such special roles and permissions on the platform to separately control access for some users to have Anypoint CLI and others to have Anypoint Platform APIs. With proper general roles/permissions (API Owner, Cloudhub Admin etc..), one can use any of the options (Anypoint CLI or Platform APIs). So, option suggesting this is FALSE.

Only TRUE statement given in the choices is that - Anypoint CLI and Mule Maven plugin are NOT included in the Mule runtime, so are NOT available to be used by deployed Mule applications.

Maven is part of Studio or you can use other Maven installation for development.

CLI is convenience only. It is one of many ways how to install app to the runtime.

These are definitely NOT part of anything except your process of deployment or automation.

Explanation

Correct Answer: A Non-Mule application

*****************************************

>> All type of Mule applications (Mule 3/ Mule 4/ with APIkit/ with Custom Java Code etc) running on Mule Runtimes support the Embedded Policy Enforcement on them.

>> The only option that cannot have or does not support embedded policy enforcement and must have API Proxy is for Non-Mule Applications.

So, Non-Mule application is the right answer.

Explanation

Correct Answer: Manually provisioned customer-hosted runtime plane and customer-hosted control plane

*****************************************

There are two key factors that are to be taken into consideration from the scenario given in the question.

>> Company requires both data and metadata to be resided within the corporate firewall

>> Company would like to go with customer-hosted infrastructure.

Any deployment model that is to deal with the cloud directly or indirectly (Mulesoft-hosted or Customer's own cloud like Azure, AWS) will have to share atleast the metadata.

Application data can be controlled inside firewall by having Mule Runtimes on customer hosted runtime plane. But if we go with Mulsoft-hosted/ Cloud-based control plane, the control plane required atleast some minimum level of metadata to be sent outside the corporate firewall.

As the customer requirement is pretty clear about the data and metadata both to be within the corporate firewall, even though customer wants to move to production as quickly as possible, unfortunately due to the nature of their security requirements, they have no other option but to go with manually provisioned customer-hosted runtime plane and customer-hosted control plane.

Explanation

Correct Answer: In parallel, invoke the system API deployed to the primary environment and the system API deployed to the DR environment, and ONLY use the first response.

*****************************************

>> The API requirement in the given scenario is to respond in least possible time.

>> The option that is suggesting to first try the API in primary environment and then fallback to API in DR environment would result in successful response but NOT in least possible time. So, this is NOT a right choice of implementation for given requirement.

>> Another option that is suggesting to ONLY invoke API in primary environment and to add timeout and retries may also result in successful response upon retries but NOT in least possible time. So, this is also NOT a right choice of implementation for given requirement.

>> One more option that is suggesting to invoke API in primary environment and API in DR environment in parallel using Scatter-Gather would result in wrong API response as it would return merged results and moreover, Scatter-Gather does things in parallel which is true but still completes its scope only on finishing all routes inside it. So again, NOT a right choice of implementation for given requirement

The Correct choice is to invoke the API in primary environment and the API in DR environment parallelly, and using ONLY the first response received from one of them.

Explanation

Correct Answer: When regulatory requirements mandate on-premises processing of EVERY data item, including meta-data.

*****************************************

We need NOT require to use Anypoint Platform PCE or PCF for the below. So these options are OUT.

>> We can make ALL applications highly available across multiple data centers using CloudHub too.

>> We can use Anypoint VPN and tunneling from CloudHub to connect to ALL backend systems in the application network that are deployed in the organization's intranet.

>> We can use Anypoint VPC and Firewall Rules to make ALL APIs private and NOT exposed to the public cloud.

Only valid reason in the given options that requires to use Anypoint Platform PCE/ PCF is - When regulatory requirements mandate on-premises processing of EVERY data item, including meta-data.
