Correct answer is System layer

System APIs provide a means for insulating the data consumers from the complexity or changes to the underlying backend systems.

MuleSoft recommends three-layered approach to API-led connectivity, highlighting the three layers:

* System APIs

* Process APIs

* Experience APIs

System APIs are the core systems of record underlying core systems of record (e.g. ERPs, key customer and billing systems, databases, etc.). Process APIs allow you to define a common process which the organization can share, and these APIs perform specific functions, provide access to non-central data, and may be built by either Central IT or Line of Business IT. And finally, the Experience APIs are the means by which data can be reconfigured so that it is most easily consumed by its intended audience, all from a common data source.

The three-layered structure allows for a seamless flow of data from systems of record to new experiences, and allows for reusability of assets rather than point to point connections. This approach provides a distributed and tailored approach to architecture, greater flexibility through loose coupling, and deeper operational visibility into what is being built.

Diagram Description automatically generated

Correct answer is MAJOR

MAJOR version when you make incompatible API changes, MINOR version when you add functionality in a backwards compatible manner, and PATCH version when you make backwards compatible bug fixes.

For details refer to this documentation :

Correct answer is ${training.host}

--------------------------------------------------------------------------------------------------------------------------------------------------

How to Configure Properties to Mule 4.X Platform?

1) Go to /src/main/resources project directory.

2) Create a configuration file with the name configuration.yaml inside the newly created config folder.

                                          Graphical user interface, application, Word Description automatically generated

3) Go To Project > Global Element > Create > General >select the configuration.yaml file create in step- 2)

                                             Graphical user interface, application Description automatically generated

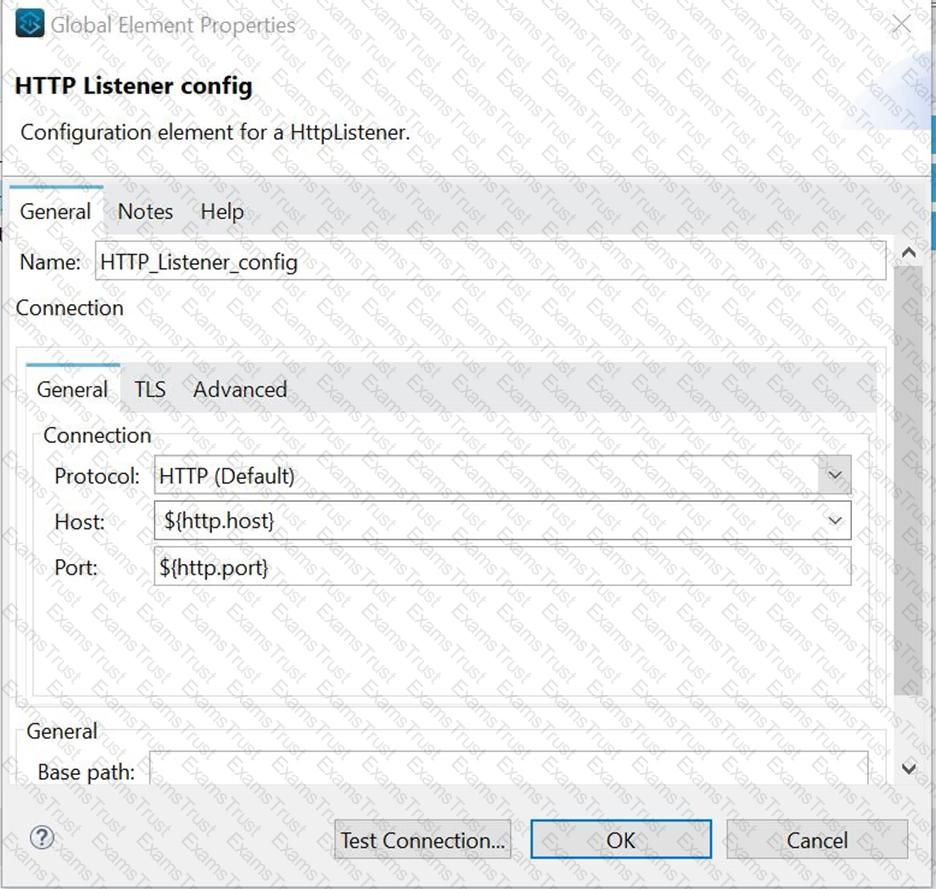

4) To verify develop a simple flow with HTTP listener which has above entries. Put the logger that prints the values on console.

                                              Graphical user interface, application Description automatically generated

5) Additional info: Similarly, when you want to access this port in DataWeave you need to use p function

                                             Graphical user interface, text, application, email Description automatically generated

Allowed methods is an optional configuration. If nothing is specified then all HTTP methods are supported.

Rest all are mandatory.

Anypoint Exchange provided a way to publish , share and search API's.

MuleSoft Doc Ref :

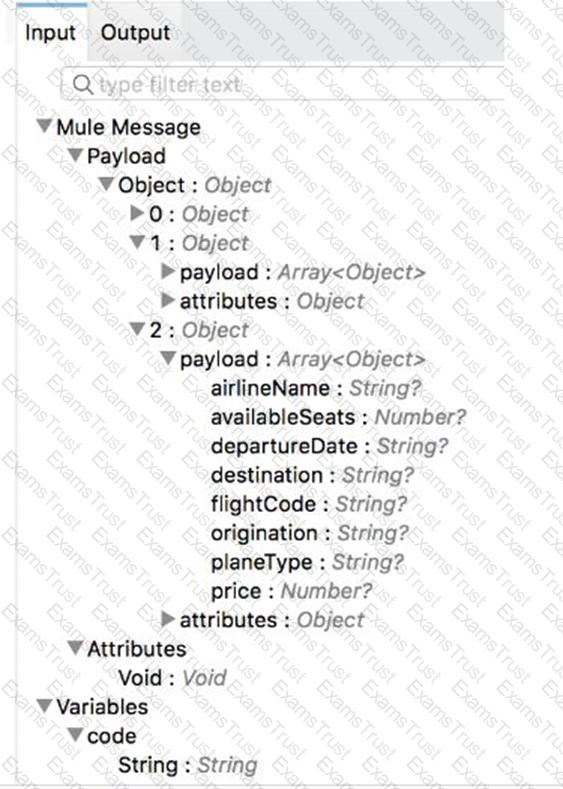

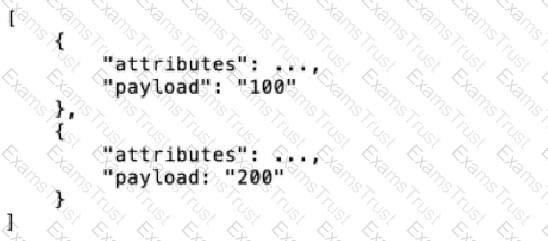

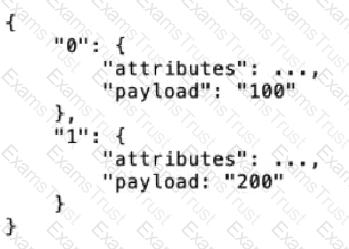

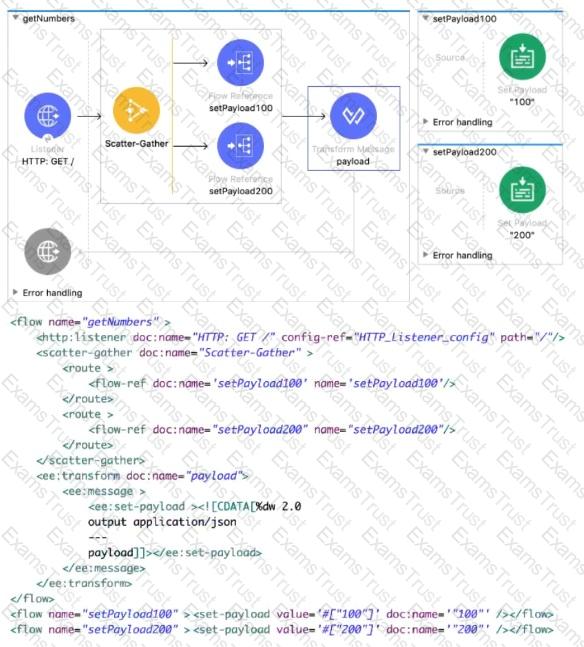

Correct answer is An Object containing all three Mule event Objects

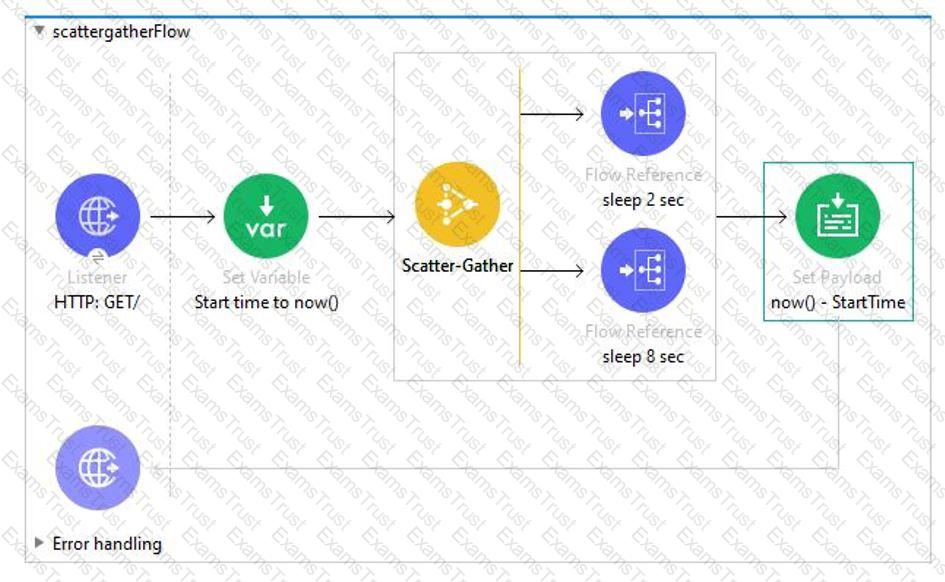

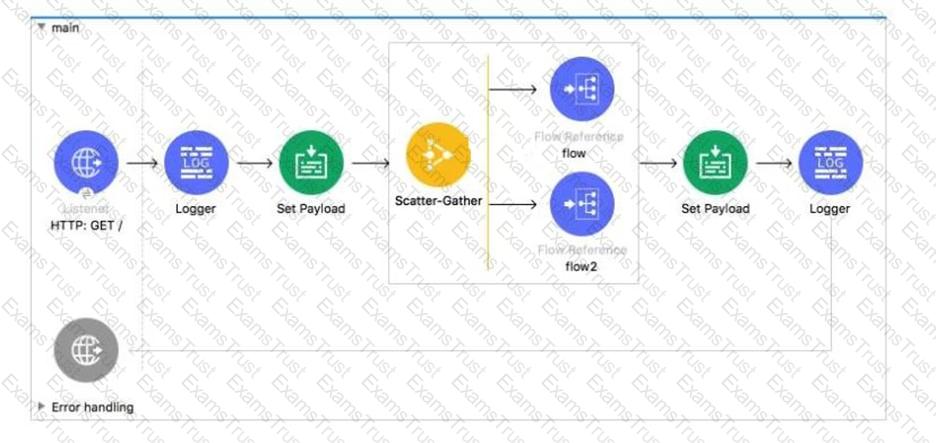

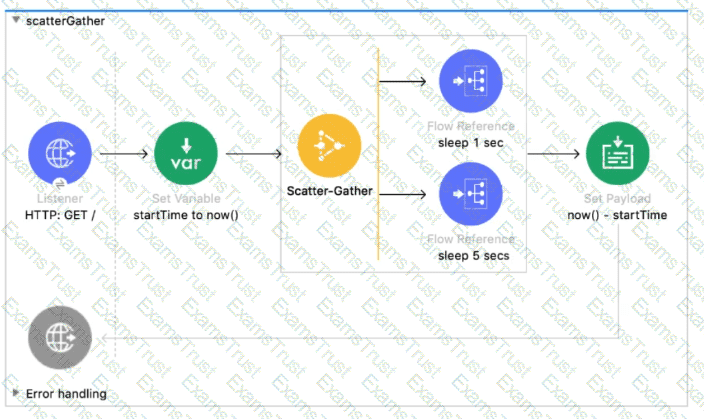

The Scatter-Gather component is a routing event processor that processes a Mule event through different parallel processing routes that contain different event processors. Each route receives a reference to the Mule event and executes a sequence of one or more event processors. Each of these routes uses a separate thread to execute the event processors, and the resulting Mule event can be either the same Mule event without modifications or a new Mule event with its own payload, attributes, and variables. The Scatter-Gather component then combines the Mule events returned by each processing route into a new Mule event that is passed to the next event processor only after every route completes successfully.

The Scatter-Gather component executes each route in parallel, not sequentially. Parallel execution of routes can greatly increase the efficiency of your Mule application and may provide more information than sequential processing.

Sample output is as below

Table Description automatically generated with low confidence

MuleSoft Documentation reference :

The HTTP 415 Unsupported Media Type client error response code indicates that the server refuses to accept the request because the payload format is in an unsupported format. The format problem might be due to the request's indicated Content-Type or Content-Encoding , or as a result of inspecting the data directly. In this case as per RAML specification data is expected in application/json and in request Content-Type is set as "text/plain" which is incorrect. Hence solution is set the request Content-Type header to application/json

-----------------------------------------------------------------------------------------------------------------------------------

Here’s specifically what is happening here:

1) Payload is successfully set to “Before”

2) Is null validation is used which will pass the message only if payload is null. In this case as payload is not null, it creates an Error Object. Flow execution stops

#[error.description] = “Validation error”

3) Because no error handler is defined, the Mule default error handler handles the error

4) “Validation error” is the error message returned to the requestor in the body of the HTTP request with HTTP Status Code: 500

Reference diagram:

A picture containing timeline Description automatically generated

Correct answer is Change the method attributes value to "POST".

It can be fixed in either of the two ways as below.

1) Changing method attribute to POST in ClientRequestFlow

2) Setting allowedMethods as PUT in ShippingFlow (but doesn't fit as question mentions about changing ClientRequestFlow)

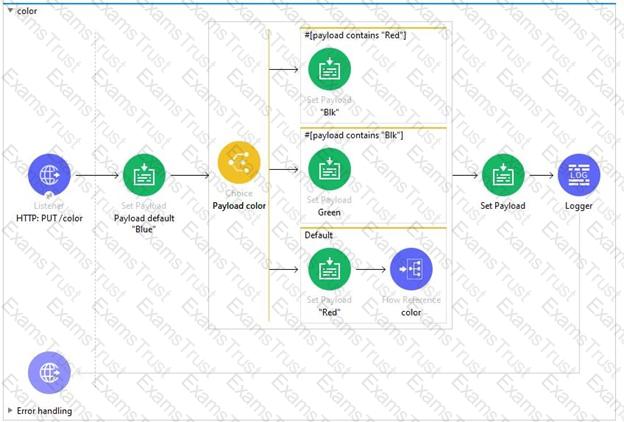

Choice Router

The Choice router dynamically routes messages through a flow according to a set of DataWeave expressions that evaluate message content. Each expression is associated with a different routing option. The effect is to add conditional processing to a flow, similar to an if/then/else code block in most programming languages.

Only one of the routes in the Choice router executes, meaning that the first expression that evaluates to true triggers that route’s execution and the others are not checked. If none of the expressions are true, then the default route executes.

Properties of

PropertyDescription

Expression (expression)

Expression in DataWeave language to evaluate input.If the expression evaluates to true, this routing option is used:

Mulesoft Doc Ref :

With respect to above information ,

Option 1 is the correct syntax as others are incorrect because of below reasons

* Single = is not the correct syntax to validate the condition. It should be ==

* If keyword is not required in when condition.

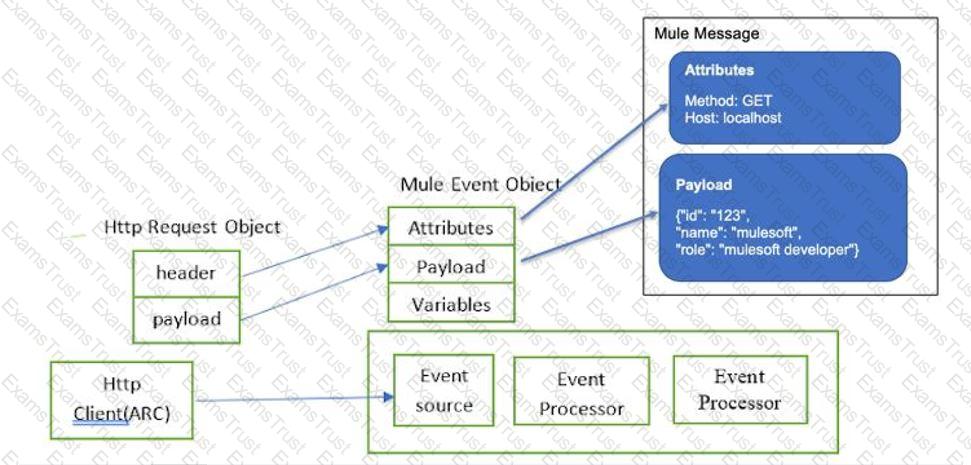

Mule event is correct answer. Mule event has two parts which are as follows

1) Message (which contains payload and attributes like headers and query/uri parameters

2) Variables

Diagram Description automatically generated

Correct answer is below as it follows the correct syntax.

/customers:

/{customerId}:

get:

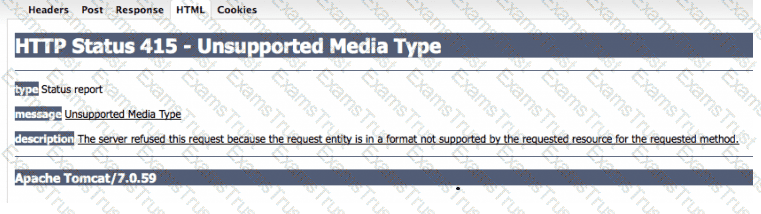

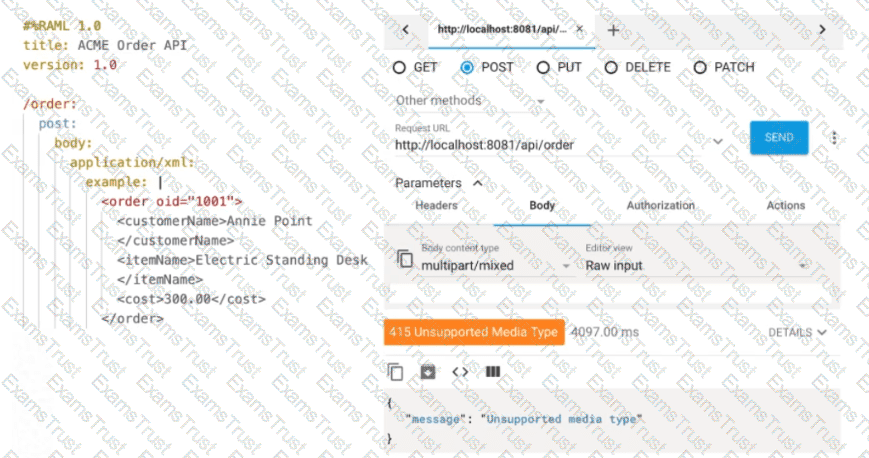

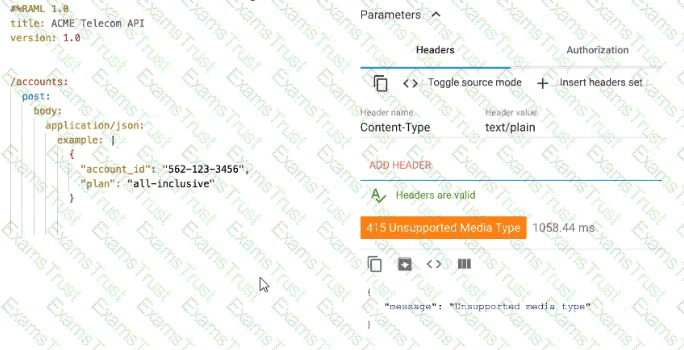

The HTTP 415 Unsupported Media Type client error response code indicates that the server refuses to accept the request because the payload format is in an unsupported format. The format problem might be due to the request's indicated Content-Type or Content-Encoding , or as a result of inspecting the data directly. As per RAML input is expected in application/xml.

Hence correct answer is Set a request header with the name Content-Type to a

Correct answer is as below. On complete phase only has access to batch job result statistics and payload is not available.

• Total Records Processed: 3
• Successful Records: 3
• Failed Records: 0

On Complete

During this phase, you can optionally configure the runtime to create a report or summary of the records it processed for the particular batch job instance. This phase exists to give system administrators and developers some insight into which records failed to address any issues that might exist with the input data.

Sample output is as below

Mule Ref Doc :

As can be seen in error message , SOAP service findFlights expects the SOAP paylaod. This can be set using transform message processor which forms SOAP payload before the Consume operation that contains the destination query parameter

Lets revise few concepts RAML which can help us to find the answer of this question.

URI Parameters

Lets have a look at below example.

• /foos:
• /{id}:
• /name/{name}:

Here, the braces { } around property names define URI parameters. They represent placeholders in each URI and do not reference root-level RAML file properties as we saw above in the baseUri declaration. The added lines represent the resources /foos/{id} and /foos/name/{name}.

Query Parameters

Now we'll define a way to query the foos collection using query parameters. Note that query parameters are defined using the same syntax that we used above for data types:

• /foos:
• get:
• description: List all Foos matching query criteria, if provided;
• otherwise list all Foos
• queryParameters:
• name?: string
• ownerName?: string

Based on the above information , below is the only option which defines storeid as uri parameter and department as query parameter.

• /{storeId}:
• get:
• queryParameter:
• department:

Correct answer is Merges elements of two lists (arrays) into a single list

MuleSoft Doc Reference :

Option 1 is the only correct choice due to two reasons. 1) Concatenation is always with ++ sign and not with + sign which makes option 2 and 3 wrong 2) hearders can be accessed with attributes. headers and not with only headers which makes option 4 incorrect

The APIkit Router is a key message processor that validates requests against the provided definition, enriches messages (for example by adding default values to the messages) and routes requests to a particular flow. Also, the Router raises errors messages if errors occurs while routing, validating or processing the user request.

This kind of questions are best solved with filtering technique. Key thing to note here is XML attributes are always access by @ notation. So in this example orderId can be accessed as @OrderId which makes option 3 and option 4 false. Now difference in optin and option 2 is in mapping of lineItemPrice. Correct syntax to format a String in Numbse is value.price as Number. Hence option 2 is correct

Correct answer is API manager

* To use custom modules, you need to import the module or functions you want to use by adding the import directive to the head of your DataWeave script, for example:

1) Does not identify any functions to import from the String module:

import dw::core::Strings

2) To identify a specific function to import from the String module:

import camelize, capitalize from dw::core::Strings

3) To import all functions from the String module:

import * from dw::core::Strings

The way you import a module impacts the way you need to call its functions from a DataWeave script. If the directive does not list specific functions to import or use * from to import all functions from a function module, you need to specify the module when you call the function from your script.

* In given scenario, it's mentioned to import all of the WebStore.dwl

So correct answer is:

Centre for Enablement (C4E) is an IT operating model that enables an enterprise to build reusable assets, accumulate API’s, leverage best practices and knowledge to enable self service and efficient delivery in the organization and implement new solutions faster

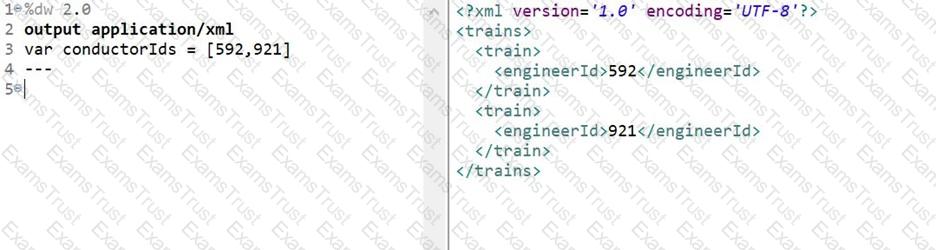

Points to remember:

* XML must have a root element.

* XML only allows one root element

* To avoid multiple root issues, you must create a root element for the XML output, whenever we transform output

* When mapping array elements (JSON or JAVA) to XML, wrap the map operations in {(..)}

-{ } are defining the object

( ) are transforming each element in the array as a key/value pair

* The transformation to XML would fail if the above mentioned considerations were not taken into account.

* Thus the transformation script declares a root element as trains and wraps the data in “{( )}“.

Whenever you see such type of question, always look out for root element followed by {( )} wrapping map.

I call this a "Wrap The Map" scenario. Hope it would help you remember !

Exchange is the odd man out here. Rest all are type of asset

Graphical user interface, application Description automatically generated

The List operation returns an array of messages in which: Each message holds the file’s content in its payload. The file’s attributes section carries the file’s metadata (such as name, creation time, and size). The payload is empty if the element is a folder.

First step in creating Modern API is to create an API specification and get feedback from stakeholders so that any future issues can be identified at early stage thereby reducing overall delivery time

Cloudhub expose services on port 8081 and override value in http.port with this one .

Sample log in Runtime Manager is below

21:15:53.148 08/08/2021 Worker-0 ArtifactDeployer.start.01 INFO

Listening for connections on ' '

This is a trcik question. On complete phase pyalod consists of summary of records processed which gives insight on which records failed or passed. Hence option 4 is correct answer

MuleSoft Documentation Reference :

Option 3 is the only corect answer as it concatenates payload with String.

Below option wont work.

#["The payload is " ++ payload]

Concatenation function expects both arguments to be string. As the question says payload is json object , this will throw error while running it. You can try this in Anypoint Studio and you will get the same result which I mentioned.

hence correct answer is

The payload is: #[payload]

String is the correct answer as XML is of an Object type String

Correct answer is

%dw 2.0

output application/json

import modules::Utility

---

Utility::encryptString( "John Smith" )

DataWeave 2.0 functions are packaged in modules. Before you begin, note that DataWeave 2.0 is for Mule 4 apps. For Mule 3 apps, refer to DataWeave Operators in the Mule 3.9 documentation. For other Mule versions, you can use the version selector for the Mule Runtime table of contents.

Functions in the Core (dw::Core) module are imported automatically into your DataWeave scripts. To use other modules, you need to import the module or functions you want to use by adding the import directive to the head of your DataWeave script, for example:

import dw::core::Strings

import camelize, capitalize from dw::core::Strings

import * from dw::core::Strings

The way you import a module impacts the way you need to call its functions from a DataWeave script. If the directive does not list specific functions to import or use * from to import all functions from a function module, you need to specify the module when you call the function from your script. For example, this import directive does not identify any functions to import from the String module, so it calls the pluralize function like this: Strings::pluralize("box").

Transform

%dw 2.0

import dw::core::Strings

output application/json

---

{ 'plural': Strings::pluralize("box") }

Correct answer is 200.1234 as String {format: ".0#"} . Rest all options are not syntactically correct.

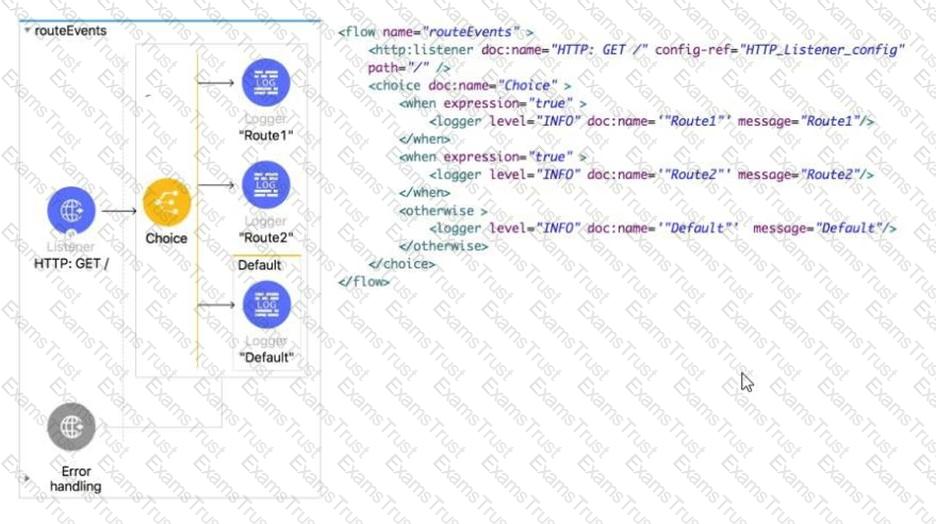

Only one of the routes in the Choice router executes, meaning that the first expression that evaluates to true triggers that route1 execution and the others are not checked. If none of the expressions are true, then the default route executes. Hence only Route1 will be executed as it is the first expression. hence output of logger is Route1.

MuleSoft Doc Ref :

The Choice router dynamically routes messages through a flow according to a set of DataWeave expressions that evaluate message content. Each expression is associated with a different routing option. The effect is to add conditional processing to a flow, similar to an if/then/else code block in most programming languages.

Only one of the routes in the Choice router executes, meaning that the first expression that evaluates to true triggers that route’s execution and the others are not checked. If none of the expressions are true, then the default route executes.

Diagram Description automatically generated

You can define your own DataWeave functions using the fun declaration in the header of a DataWeave script. Sample is as below. ----------------------------------------

%dw 2.0

output application/json

fun toUpper(aString) = upper(aString)

---

toUpper("hello")

MuleSoft Doc Ref :

Mule applications can be scaled vertically by changing worker size. Mule applications can be scaled horizontally by adding more workers.

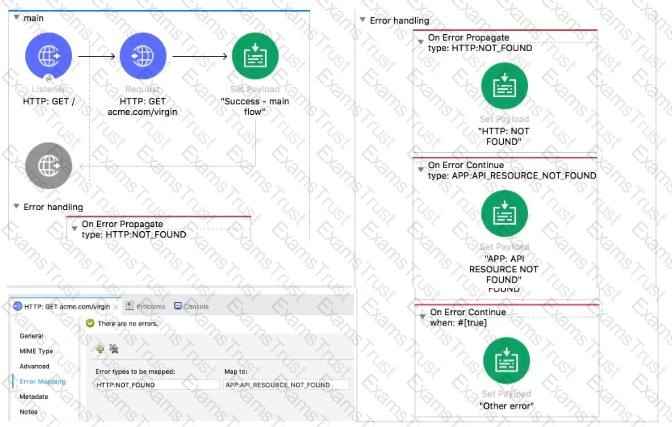

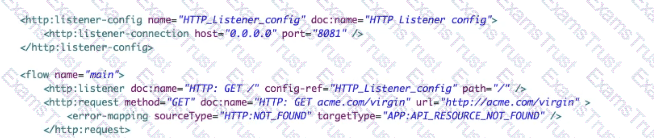

Correct answer is APP: API RESOURCE NOT FOUND

---------------------------------------------------------------------------------------------------------------------------------------------------

1) A web client submits the request to the HTTP Listener.

2) The HTTP Request throws an "HTTP:NOT_FOUND" error, execution halts.

3) The On Error Propagate error Handler handles the error. In this case ,HTTP:NOT_FOUND error is mapped to custom error APP:API_RESOURCE_NOT_FOUND. This error processor sets payload to APP:API_RESOURCE_NOT_FOUND.

4) “APP:API_RESOURCE_NOT_FOUND. ” is the error message returned to the requestor in the body of the HTTP request with HTTP Status Code: 500

Reference Diagram:

Diagram Description automatically generated with medium confidence

Correct answer is Publish the API to Anypoint Exchange

Anypoint Exchange makes this possible by making it discoverable in below ways

1) In private exchange for internal developers

2) In a public portal for external developers/clients

Here is diagram created by me to help you understand sequence:

Diagram Description automatically generated

In case of an error , batch job completes in flight steps and stops further processing.

MuleSoft Doc Ref : Handling Errors During Batch Job | MuleSoft Documentation

The default is all processing will stop but we can change it by Max Failed Record field.

General -> Max Failed Records: Mule has three options for handling a record-level error: Finish processing, Continue processing and Continue processing until the batch job accumulates a maximum number of failed records. This behavior can be controlled by Max Failed Records.

The default value is Zero which corresponds to Finish processing.

The value -1, corresponds to Continue processing.

The value +ve integer, corresponds to Continue processing until the batch job accumulates a maximum number of failed records

Returns an array that is the result of applying a transformation function (lambda) to each of the elements.

MuleSoft Doc Ref :

The map operator is a function in Dataweave which iterates over the items in an array and outputs them into a new array. It basically accepts input as a list of items in an array and manipulates the items in the array in order to form a new array as an output.

I have created below chart for your easier understanding:

Table Description automatically generated

Keyword to ad function in Dataweave transformation is fun. Hence option 2 and 4 are invalid. Also parameters needs to be passed exactly in same order as defined in function definition. Hence correct answer is'

fun addKV( object: Object, key: String, value: Any) =

object ++ {(key):(value)}

---

addKV ( {"hello': "world"}, "hola", "mundo" )

MuleSoft Documentation Reference :

DataWeave Function Definition Syntax

To define a function in DataWeave use the following syntax:

fun myFunction(param1, param2, ...) =

The fun keyword starts the definition of a function.

myFunction is the name you define for the function.

Function names must be valid identifiers.

(param1, param2, … , paramn) represents the parameters that your function accepts.

You can specify from zero to any number of parameters, separated by commas (,) and enclosed in parentheses.

The = sign marks the beginning of the code block to execute when the function is called.

represents the actual code that you define for your function.
