Splunk SPLK-1003 Splunk Enterprise Certified Admin Exam Practice Test

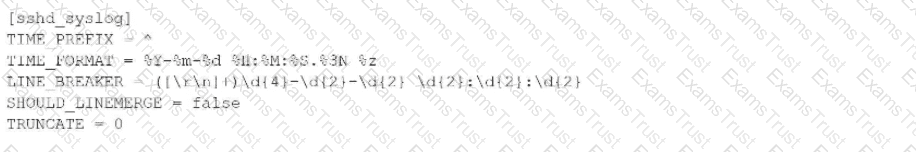

"You can specify a SEDCMD configuration in props.conf to address data that contains characters that the third-party server cannot process. "

When Splunk is integrated with LDAP, most of the user attributes are managed by the LDAP server and cannot be changed in the Splunk UI. However, one exception is the default app attribute, which specifies which app a user sees when they log in to Splunk. This attribute can be changed in the Splunk UI by editing the user settings. Therefore, option A is the correct answer. References: Splunk Enterprise Certified Admin | Splunk, [Configure Splunk to use LDAP and map groups - Splunk Documentation]

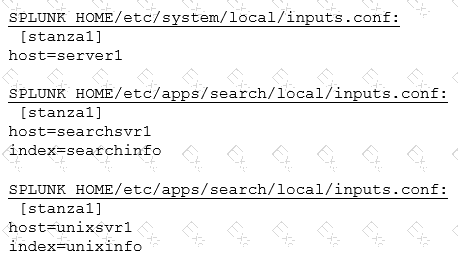

- etc/system/local/ has better precedence at index time - for identical settings in the same file, the last one overwrite others, see : thin-a-single/m-p/283566

This is because the input type is UDP, which is an unreliable protocol that does not guarantee delivery, order, or integrity of the data packets. UDP does not have any mechanism to resend or acknowledge the data packets, so if Splunk is restarted, any data that was in transit or in the buffer may be dropped and not indexed.

cs.splunk.com/Documentation/Splunk/8.0.4/Admin/Propsconf#props.conf.spec

"* Reuse of the same field-extracting regular expression across multiple sources, source types, or hosts." c

Users log on to the search head and run reports: – The search head dispatches searches to the peers – Peers run searches in parallel and return their portion of results – The search head consolidates the individual results and prepares reports

Scroll down to the section Titled, How to configure forwarder inputs, and subsection Here are the main ways that you can configure data inputs on a forwarder Install the app or add-on that contains the inputs you wants

Using the Splunk reference URL

"search peer is a splunk platform instance that responds to search requests from a search head. The term "search peer" is usally synonymous with the indexer role in a distributed search topology. However, other instance types also have access to indexed data, particularly internal diagnostic data, and thus function as search peers when they respond to search requests for that data."

The ellipsis wildcard searches recursively through directories and any number of levels of subdirectories to find matches.

If you specify a folder separator (for example, //var/log/.../file), it does not match the first folder level, only subfolders.

* The asterisk wildcard matches anything in that specific folder path segment.

Unlike ..., * does not recurse through subfolders.

--Key configuration files are: inputs.conf controls how the forwarder collects data. outputs.conf controls how the forwarder sends data to an indexer or other forwarder server.conf for connection and performance tuning deploymentclient.conf for connecting to a deployment server

"The Splunk platform collects remote Windows data for indexing in one of two ways: From Splunk forwarders, Using Windows Management Instrumentation (WMI). For Splunk Cloud deployments, you must use the Splunk Universal Forwarder on a Windows machines to montior remote Windows data."

curl \ -H “Authorization: Splunk DF4S7ZE4-3GS1-8SFS-E777-0284GG91PF67” \ -d ‘{“event”: “Hello World”}, {“event”: “Hola Mundo”}, {“event”: “Hallo Welt”}’. This is the correct curl command to send multiple events through HTTP Event Collector (HEC), which is a token-based API that allows you to send data to Splunk Enterprise from any application that can make an HTTP request. The command has the following components:

The URL of the HEC endpoint, which consists of the protocol (https), the hostname or IP address of the Splunk server (mysplunkserver.example.com), the port number (8088), and the service name (services/collector).

The header that contains the authorization token, which is a unique identifier that grants access to the HEC endpoint. The token is prefixed with Splunk and enclosed in quotation marks. The token value (DF4S7ZE4-3GS1-8SFS-E777-0284GG91PF67) is an example and should be replaced with your own token value.

The data payload that contains the events to be sent, which are JSON objects enclosed in curly braces and separated by commas. Each event object has a mandatory field called event, which contains the raw data to be indexed. The event value can be a string, a number, a boolean, an array, or another JSON object. In this case, the event values are strings that say hello in different languages.

.

Per the provided Splunk reference URL

"While HEC has precautions in place to prevent data loss, it's impossible to completely prevent such an occurrence, especially in the event of a network failure or hardware crash. This is where indexer acknolwedgment comes in."

Reference

The inputs.conf file is used to configure inputs, distributed inputs such as forwarders, and file system monitoring in Splunk1.

The [script://myscript.sh] stanza specifies a script input, which means that Splunk runs the script and indexes its output1.

The interval setting determines how often Splunk runs the script. If the interval is set to 0, the script runs only once when Splunk starts up1. If the interval is omitted, the script runs at the default interval of 60 seconds2.

Therefore, option C is correct, and the other options are incorrect.

This option corresponds to the file path “$SPLUNK_HOME/etc/apps/splunk_TA_nginx/local/inputs.conf”. This is the configuration file that the user needs to edit to ingest the NGINX access logs to ensure it remains unaffected after upgrade. This is explained in the Splunk documentation, which states:

The local directory is where you place your customized configuration files. The local directory is empty when you install Splunk Enterprise. You create it when you need to override or add to the default settings in a configuration file. The local directory is never overwritten during an upgrade.

A Splunk deployment server is a system that distributes apps, configurations, and other assets to groups of Splunk Enterprise instances. You can use it to distribute updates to most types of Splunk Enterprise components: forwarders, non-clustered indexers, and search heads2.

A Splunk deployment server is available on every full Splunk Enterprise instance. To use it, you must activate it by placing at least one app into %SPLUNK_HOME%\etc\deployment-apps on the host you want to act as deployment server3.

A Splunk deployment server maintains the list of server classes and uses those server classes to determine what content to distribute to each client. A server class is a group of deployment clients that share one or more defined characteristics1.

A Splunk deployment client is a Splunk instance remotely configured by a deployment server. Deployment clients can be universal forwarders, heavy forwarders, indexers, or search heads. Each deployment client belongs to one or more server classes1.

A Splunk deployment app is a set of content (including configuration files) maintained on the deployment server and deployed as a unit to clients of a server class. A deployment app can be an existing Splunk Enterprise app or one developed solely to group some content for deployment purposes1.

Therefore, option C is correct, and the other options are incorrect.

# Compression

#

# This example sends compressed events to the remote indexer.

# NOTE: Compression can be enabled TCP or SSL outputs only.

# The receiver input port should also have compression enabled.

[tcpout]

server = splunkServer.example.com:4433

compressed = true

-Scroll down to source =

*Default: the input file path

The correct answer is C. /var/log/host_460352847/bar/file/foo.txt.

The monitor stanza in inputs.conf is used to configure Splunk to monitor files and directories for new data. The monitor stanza has the following syntax1:

[monitor://]

The input path can be a file or a directory, and it can include wildcards (*) and regular expressions. The wildcards match any number of characters, including none, while the regular expressions match patterns of characters. The input path is case-sensitive and must be enclosed in double quotes if it contains spaces1.

In this case, the input path is /var/log//bar/.txt, which means Splunk will monitor any file with the .txt extension that is located in a subdirectory named bar under the /var/log directory. The subdirectory bar can be at any level under the /var/log directory, and the * wildcard will match any characters before or after the bar and .txt parts1.

Therefore, the file /var/log/host_460352847/bar/file/foo.txt will be matched by the monitor stanza, as it meets the criteria. The other files will not be matched, because:

A. /var/log/host_460352847/temp/bar/file/csv/foo.txt has a .csv extension, not a .txt extension.

B. /var/log/host_460352847/bar/foo.txt is not located in a subdirectory under the bar directory, but directly in the bar directory.

D. /var/log/host_460352847/temp/bar/file/foo.txt is located in a subdirectory named file under the bar directory, not directly in the bar directory.

REGEX =

* Enter a regular expression to operate on your data.

FORMAT =

* NOTE: This option is valid for both index-time and search-time field extraction. Index-time field extraction configuration require the FORMAT settings. The FORMAT settings is optional for search-time field extraction configurations.

* This setting specifies the format of the event, including any field names or values you want to add.

DEST_KEY =

* NOTE: This setting is only valid for index-time field extractions.

* Specifies where SPLUNK software stores the expanded FORMAT results in accordance with the REGEX match.

Adding further clarity and quoting same Splunk reference URL from @giubal"

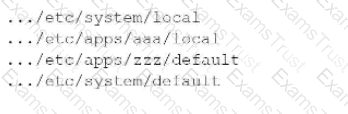

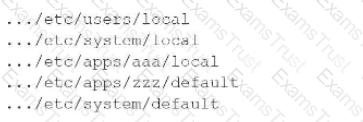

"To keep configuration settings consistent across peer nodes, configuration files are managed from the cluster master, which pushes the files to the slave-app directories on the peer nodes. Files in the slave-app directories have the highest precedence in a cluster peer's configuration. Here is the expanded precedence order for cluster peers:

1.Slave-app local directories -- highest priority

2. System local directory

3. App local directories

4. Slave-app default directories

5. App default directories

6. System default directory --lowest priority

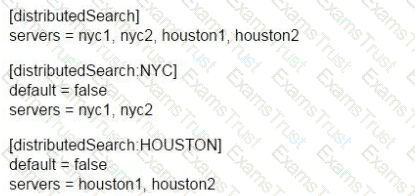

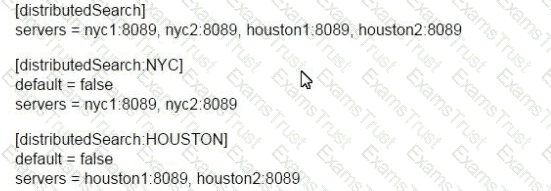

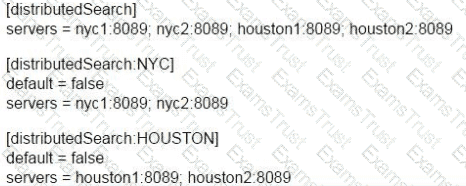

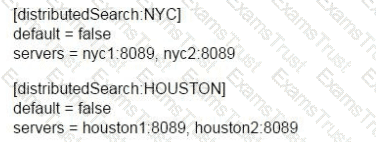

/Splunk/8.1.1/DistSearch/Forwardsearchheaddata

Per the provided Splunk reference URL by @hwangho, scroll to section Forward search head data, subsection titled, 2. Configure the search head as a forwarder. "Create an outputs.conf file on the search head that configures the search head for load-balanced forwarding across the set of search peers (indexers)."

The deployer is a Splunk Enterprise instance that you use to distribute apps and certain other configuration updates to search head cluster members. The set of updates that the deployer distributes is called the configuration bundle. com/Documentation/Splunk/8.1.3/DistSearch/PropagateSHCconfigurationchanges#:~:text=The%20deployer%20is%20a%20Splunk,is%20called%20the%20configuration%20bundle.

First line says it all: "The deployment server distributes deployment apps to clients."

In Splunk Enterprise, when you configure the server.conf file with strict pool quota=false, it means that license pools are allowed to share the total available license quota rather than being restricted to their individually allocated quotas. However, this does not prevent pools from issuing warnings if they exceed their allocated limits.

Given the environment with a 1000 GB/day license split into three pools:

Pool X: 500 GB/day license, 100 GB used

Pool Y: 350 GB/day license, 400 GB used

Pool Z: 150 GB/day license, 300 GB used

Let's analyze the usage:

Pool X is allocated 500 GB/day but has only used 100 GB, well within its limit.

Pool Y is allocated 350 GB/day but has used 400 GB, which exceeds its limit by 50 GB.

Pool Z is allocated 150 GB/day but has used 300 GB, which exceeds its limit by 150 GB.

Even with strict pool quota=false, pools Y and Z have exceeded their individual allocated quotas and will issue warnings. Pool X has not exceeded its quota and thus will not issue any warnings. Therefore, the pools that are issued warnings are Y and Z.

The indexing pipeline and the parsing pipeline are the two pipelines that are responsible for transforming the raw data into events and preparing them for indexing. The indexing pipeline applies index-time settings, such as timestamp extraction, line breaking, host extraction, and source type recognition. The parsing pipeline applies parsing settings, such as field extraction, event segmentation, and event annotation.

According to the Splunk system admin course PDF, When adding native users, Username and Password ARE REQUIRED

The fastest way to add data to your Splunk Cloud instance or Splunk Enterprise deployment is to use Splunk Web. After you access the Add Data page, choose one of three options for getting data into your Splunk platform deployment with Splunk Web: (1) Upload, (2) Monitor, (3) Forward The Upload option lets you upload a file or archive of files for indexing. When you choose Upload option, Splunk Web opens the upload process page. Monitor. For Splunk Enterprise installations, the Monitor option lets you monitor one or more files, directories, network streams, scripts, Event Logs (on Windows hosts only), performance metrics, or any other type of machine data that the Splunk Enterprise instance has access to.

https://docs.splunk.com/Documentation/Splunk/8.2.2/Admin/Distdeploylicenses#:~:text=License%20requirements,do%20not%20index%20external%20data.

"All Splunk Enterprise instances functioning as management components needs access to an Enterprise license. Management components include the deployment server, the indexer cluster manager node, the search head cluster deployer, and the monitoring console."

"The deployment server is the tool for distributing configurations, apps, and content updates to groups of Splunk Enterprise instances."

The correct answer is C. Distributed search is the feature that allows search heads in a company’s European offices to search data in their New York offices. Distributed search also enables restricting access to certain indexers by using the splunk_server field or the server.conf file1.

Distributed search is a way to scale your Splunk deployment by separating the search management and presentation layer from the indexing and search retrieval layer. With distributed search, a Splunk instance called a search head sends search requests to a group of indexers, or search peers, which perform the actual searches on their indexes. The search head then merges the results back to the user2.

Distributed search has several use cases, such as horizontal scaling, access control, and managing geo-dispersed data. For example, users in different offices can search data across the enterprise or only in their local area, depending on their needs and permissions2.

The other options are incorrect because:

A. Indexer clustering is a feature that replicates data across a group of indexers to ensure data availability and recovery. Indexer clustering does not directly affect distributed search, although search heads can be configured to search across an indexer cluster3.

B. LDAP control is a feature that allows Splunk to integrate with an external LDAP directory service for user authentication and role mapping. LDAP control does not affect distributed search, although it can be used to manage user access to data and searches.

D. Search head clustering is a feature that distributes the search workload across a group of search heads that share resources, configurations, and jobs. Search head clustering does not affect distributed search, although the search heads in a cluster can search across the same set of indexers.

Specifies a comma-separated list of tcpout group names. Use this setting to selectively forward your data to specific indexers by specifying the tcpout groups that the forwarder should use when forwarding the data. Define the tcpout group names in the outputs.conf file in [tcpout:] stanzas. The groups present in defaultGroup in [tcpout] stanza in the outputs.conf file.

The correct answer is C and D. A heavy forwarder and an indexer are the Splunk components that can break a stream of syslog inputs into individual events.

A universal forwarder is a lightweight agent that can forward data to a Splunk deployment, but it does not perform any parsing or indexing on the data. A search head is a Splunk component that handles search requests and distributes them to indexers, but it does not process incoming data.

A heavy forwarder is a Splunk component that can perform parsing, filtering, routing, and aggregation on the data before forwarding it to indexers or other destinations. A heavy forwarder can break a stream of syslog inputs into individual events based on the line breaker and should linemerge settings in the inputs.conf file1.

An indexer is a Splunk component that stores and indexes data, making it searchable. An indexer can also break a stream of syslog inputs into individual events based on the props.conf file settings, such as TIME_FORMAT, MAX_TIMESTAMP_LOOKAHEAD, and line_breaker2.

A Splunk component is a software process that performs a specific function in a Splunk deployment, such as data collection, data processing, data storage, data search, or data visualization.

Syslog is a standard protocol for logging messages from network devices, such as routers, switches, firewalls, or servers. Syslog messages are typically sent over UDP or TCP to a central syslog server or a Splunk instance.

Breaking a stream of syslog inputs into individual events means separating the data into discrete records that can be indexed and searched by Splunk. Each event should have a timestamp, a host, a source, and a sourcetype, which are the default fields that Splunk assigns to the data.

References:

1: Configure inputs using Splunk Connect for Syslog - Splunk Documentation

2: inputs.conf - Splunk Documentation

3: How to configure props.conf for proper line breaking … - Splunk Community

4: Reliable syslog/tcp input – splunk bundle style | Splunk

5: Configure inputs using Splunk Connect for Syslog - Splunk Documentation

6: About configuration files - Splunk Documentation

[7]: Configure your OSSEC server to send data to the Splunk Add-on for OSSEC - Splunk Documentation

[8]: Splunk components - Splunk Documentation

[9]: Syslog - Wikipedia

[10]: About default fields - Splunk Documentation

Splunk REST API is a valid method to create a Splunk user. The Splunk REST API allows administrators to create, edit, and delete users programmatically using HTTP requests. The other options are not valid methods to create a Splunk user. Creating a support ticket does not create a user, but requests assistance from Splunk support. Creating a user on the host operating system does not create a Splunk user, but a system user. Adding the username to users.conf does not create a user, but modifies the configuration file that stores user information. References = Configure users with the CLI, Configure users and roles

You can have a role inherit certain properties from one or more existing role k.com/Documentation/Splunk/8.0.5/Security/Aboutusersandroles

Using the provided DUO/Splunk reference URL

Scroll down to the Network Diagram section and note the following 6 similar steps

1 - SPlunk connection initiated

2 - Primary authentication

3 - Splunk connection established to Duo Security over TCP port 443

4 - Secondary authentication via Duo Security's service

5 - Splunk receives authentication response

6 - Splunk session logged in.

After an app is downloaded, it resides under $SPLUNK_HOME/etc/apps on the deployment clients. But it resided in the $SPLUNK_HOME/etc/deployment-apps location in the deployment server.

Scroll down to section titled, How the cluster handles concurrent search quotas, "Overall search quota. This quota determines the maximum number of historical searches (combined scheduled and ad hoc) that the cluster can run concurrently. This quota is configured with max_Searches_per_cpu and related settings in limits.conf."
